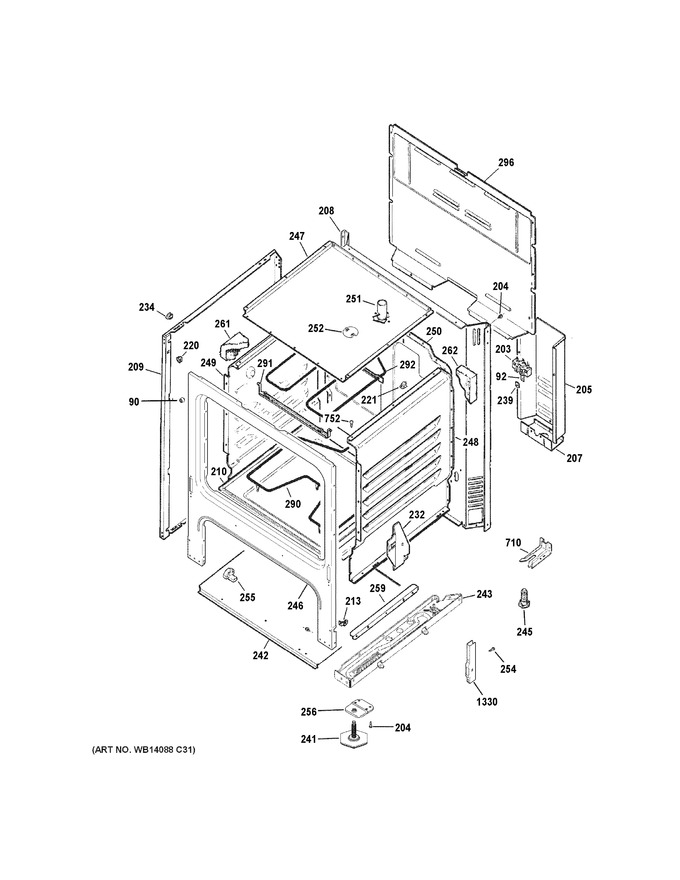

Body Parts
Control Panel & Cooktop
Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 90 | WB02X28738 | Frame Front Bumper |
|
- | |||||
| 92 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 203 | WG02F02750 | Terminal Block Asm (Replaces: WB17T10011) |
|
Immediately | $ 143.06 | ||||
| 204 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 205 | WB34X21584 | Guard Terminal |
|
- | |||||
| 207 | WB02K10029 | Bracket Mtg Terminal |
|
- | |||||
| 208 | WB63K10273 | Range Back |
|
- | |||||
| 209 | WB56X22014 | Panel Side |
|
- | |||||
| 210 | WB63K10006 | Oven Bottom |
|
- | |||||
| 213 | WS01A01039 | Nut Speed (Replaces: WB1K3) |
|
$ 3.57 | |||||
| 220 | WB2K8 | Grommet |
|
- | |||||
| 221 | WB2K10 | Clip Capillary |
|
- | |||||
| 232 | WB34K3 | Hinge Guard Right |
|
- | |||||
| 232 | WB34K4 | Hinge Guard Left |
|
- | |||||
| 234 | WB2K66 | Guide Support Rgtp |
|
- | |||||
| 239 | WB2X646 | Plate-ground |
|
- | |||||
| 241 | WB02X29030 | Leg Leveling |
|
- | |||||
| 242 | WB63K10241 | Guard Insulation Bottom |
|
- | |||||
| 243 | WB63K10232 | Support Base Right |
|
- | |||||
| 243 | WG02L02342 | Support Base Left (Replaces: WB63K10233) |
|
$ 34.02 | |||||
| 245 | WS01L05470 | Leg Leveler (Replaces: WB02K10182) |
|
Immediately | $ 3.57 | ||||
| 246 | WB63X21360 | Frame Weld Asm |
|
- | |||||
| 247 | WB63K10021 | Oven Top |
|
- | |||||
| 248 | WB63X23795 | Side Oven Rt |
|
- | |||||
| 249 | WB63X23794 | Side Oven Lf |
|
- | |||||
| 250 | WB63K10016 | Back Oven |
|
- | |||||
| 251 | WB38K10002 | Tube-vent |
|
- | |||||
| 252 | WB04K10002 | Vent Cover |
|
- | |||||
| 254 | WS01A01073 | Screw Mtg Hinge (torx) (Replaces: WB1K53) |
|
$ 3.57 | |||||
| 255 | WS01A00942 | Drawer Support (Replaces: WB02K10158) |
|
Immediately | $ 4.07 | ||||
| 256 | WB34X29134 | Bracket Base |
|
- | |||||
| 259 | WS01L00759 | Rail Drawer (Replaces: WB39K16) |
|
Immediately | $ 11.44 | ||||
| 261 | WS01F00054 | Insulation Oven Wrap (Replaces: WB35K10108) |
|
$ 73.44 | |||||
| 262 | WB35K10107 | Insulation Oven Back |
|
- | |||||
| 290 | WS01F11296 | Bake Element (Replaces: WB44K10005) |
|
Immediately | $ 68.72 | ||||
| 291 | WS01A00816 | Support Broil (Replaces: WB02K10028) |
|
$ 16.61 | |||||
| 292 | WS01F11295 | Broil Element (Replaces: WB44K10002) |
|
Immediately | $ 65.56 | ||||
| 296 | WB34X24300 | Cover Back |
|
- | |||||
| 710 | WB02X27862 | Bracket Asm Anti-tip |
|
- | |||||
| 752 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 1330 | WS01L11027 | Receiver Hinge (Replaces: WB10X20220) |
|
Immediately | $ 5.18 |
