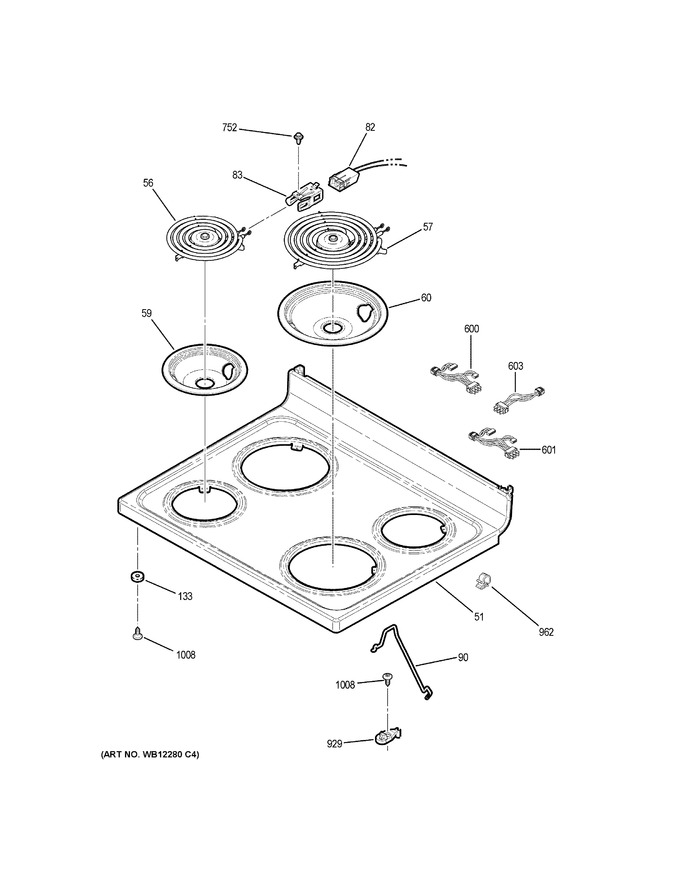

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | WB62T10613 | Rangetop Mech Asm |
|
- | |||||
| 56 | WB30X31058 | 6" Surface Burner With Sensor |
|
- | |||||
| 57 | WB30X31057 | 8" Surface Burner With Sensor |
|
- | |||||
| 59 | WB31T10014 | 6 Inch Black Porcelain Burner Bowl-elec |
|
- | |||||
| 60 | WG02L01430 | 8 Inch Black Porcelain Burner Bowl-elec (Replaces: WB31T10015) |
|
Immediately | $ 24.33 | ||||
| 82 | WB18X30954 | Receptacle Clip |
|
- | |||||
| 83 | WB02K10381 | Clip Receptacle |
|
- | |||||
| 90 | WB02T10025 | Rod Support |
|
- | |||||
| 133 | WB02X29562 | Rangetop Bumper |
|
- | |||||
| 600 | WB18X32637 | Harness Wire Maintop Lt |
|
- | |||||
| 600 | WB18X30783 | Maintop Harness Wire Lt |
|
- | |||||
| 601 | WB18X30782 | Maintop Harness Wire Rt |
|
- | |||||
| 601 | WB18X32636 | Harness Wire Maintop Rt |
|
- | |||||
| 603 | WB18T10466 | Lead Wire 18 Ga Y |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
