01 - Cover Sheet


02 - Cooktop Parts

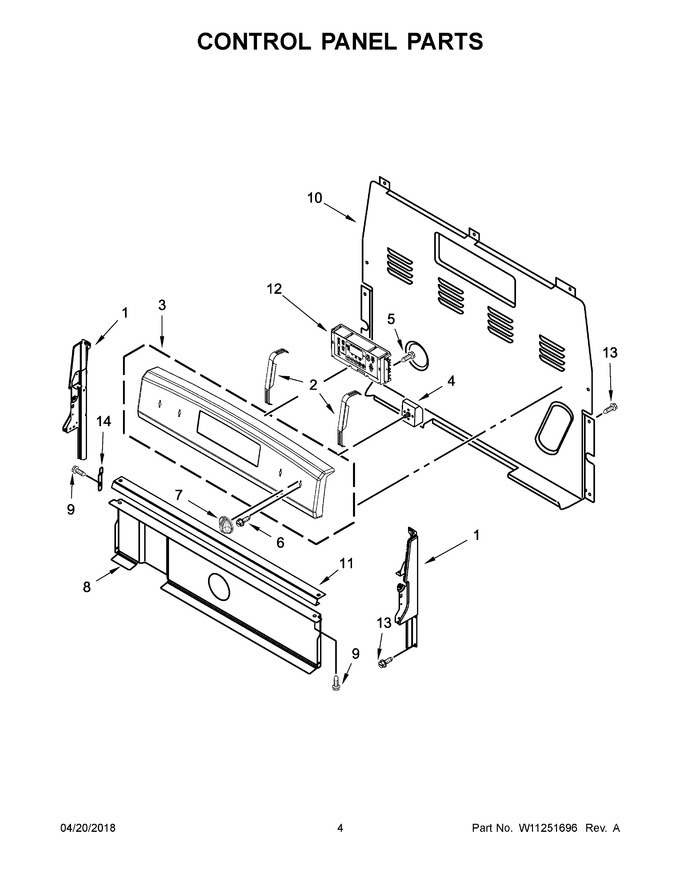

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
3	W11231949		Panel, Control (black)   (Replaces: W11157010)		Appelez-nous	-
4	5500-287		Switch, Infinite (green) (right Front And Left Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
6	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
7	W11210997		Knob, Infinite (black)   (Replaces: W10844801)				$ 79.16
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W10904904		Control (lcc95) (black)   (Replaces: W10837801)				$ 502.99
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	3196200		Clip, Spring				$ 10.45
12A	W10904901		Control (lcc95) (white)   (Replaces: W10837800)				$ 502.99
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
3A	W11231950		Panel, Control (white)   (Replaces: W11157009)				$ 135.98
4A	5500-287		Switch, Infinite (left Front And Right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
7A	W11188750		Knob, Infinite (white)   (Replaces: W10844800)				$ 21.54

    View Diagram in Separate Window       Print Part List
