01 - Cover Sheet

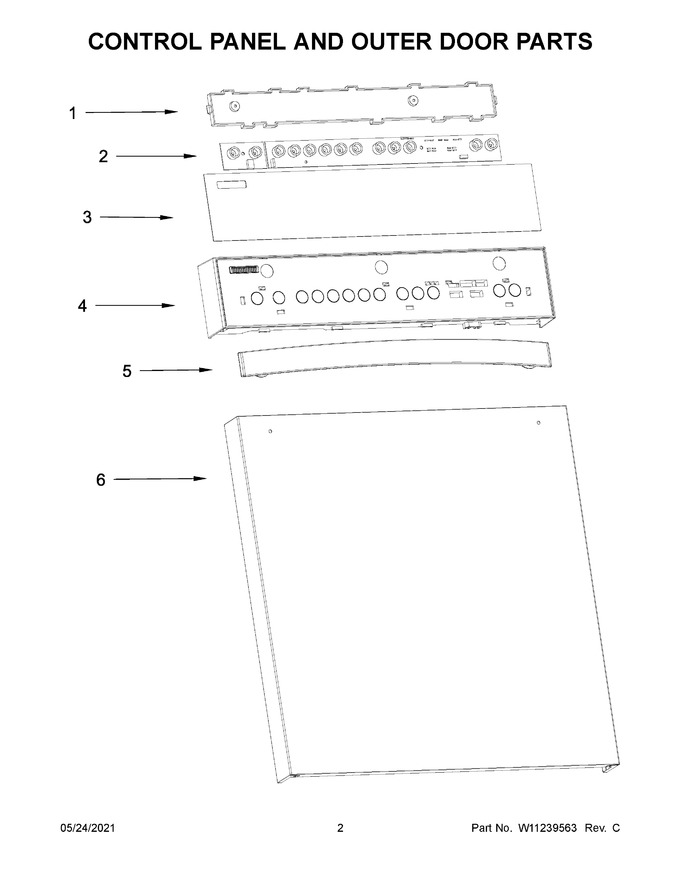

02 - Control Panel And Outer Door Parts


03 - Inner Door Parts


04 - Fill Drain And Base Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Wash System Parts


08 - Dishrack Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11230391		Housing, Pcb Display		Appelez-nous	-
2	W11677714		Control Board, Display   (Replaces: W11230393)				$ 284.64
3	W11230396		Console Overlay (black)		Appelez-nous	-
4	W11230397		Console Assembly (black)		Appelez-nous	-
5	W11572098		Handle Assembly (black)   (Replaces: W11230399)				$ 99.27
6	W11230402		Panel, Front (black)		Appelez-nous	-
3A	W11230554		Console Overlay (white)		Appelez-nous	-
4A	W11230555		Console Assembly (white)		Appelez-nous	-
4B	W11230528		Console Assembly (stainless)		Appelez-nous	-
5A	W11757259		Handle Assembly (white)   (Replaces: W11230556)				$ 83.90
5B	W11685315		Handle Assembly (stainless)   (Replaces: W11230547)			Immediately	$ 92.53
6A	W11230557		Panel, Front (white)		Appelez-nous	-
6B	W11230548		Panel, Front (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
