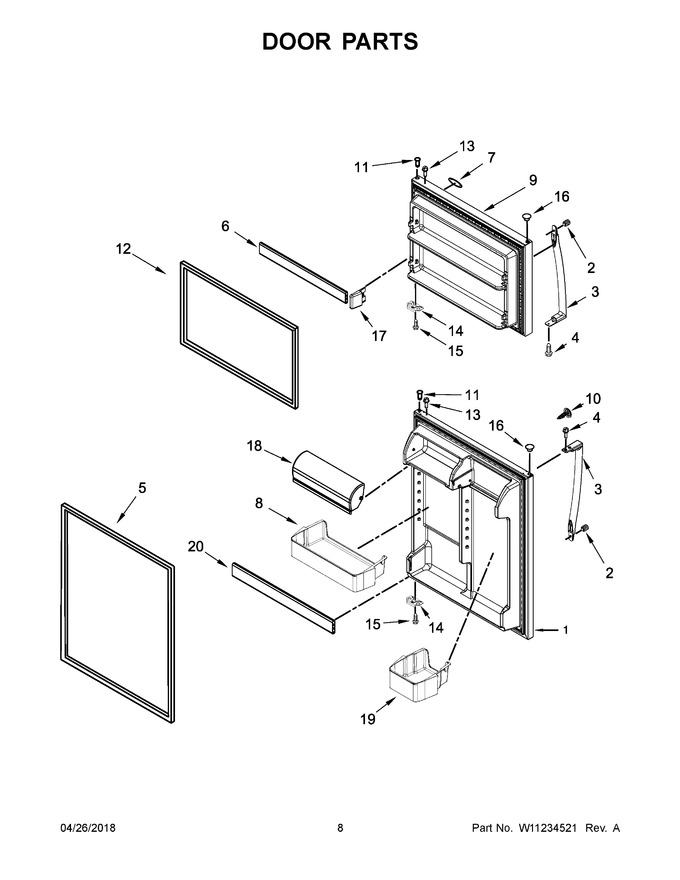

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11041496 | Refrigerator Door (includes Illustration 5) (black Stainless) (Replaces: W11041496) |
|
$ 599.68 | |||||
| 2 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 16.11 | |||||
| 3 | W11253595 | Handle, Door (black Stainless) (Replaces: W11041889) |
|
$ 206.68 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 125.96 | |||||
| 7 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | LW11041497 | Freezer Door (includes Illustration 12) (black Stainless) (Replaces: W11041497) |
|
$ 440.92 | |||||
| 10 | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 11 | W11189115 | Thimble (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 12 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WP2212651 | Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 55.68 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 19 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 20 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 127.34 |
