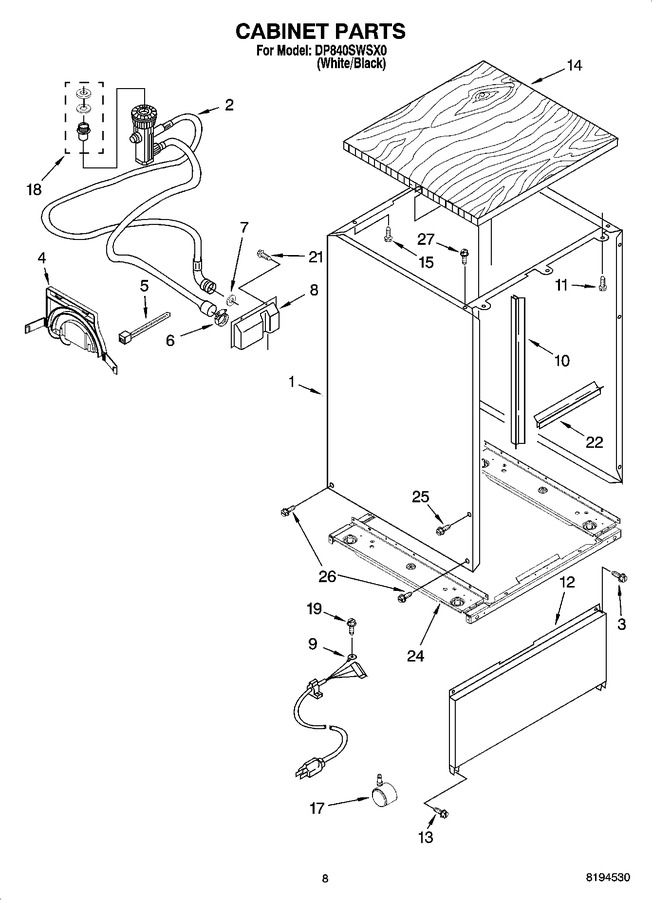

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3378111		Shell Assembly (white)				$ 261.95
2	WPW10273574		Coupler Assembly   (Replaces: 8275398)			Immediately	$ 204.68
3	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.75
4	3378109		Saddle, Hose		Appelez-nous	-
5	WPW10339879		Clip, Strap   (Replaces: 309330)				$ 7.90
6	WP3367052		Clamp, Hose   (Replaces: 3367052)				$ 8.32
7	WP16123		Washer   (Replaces: 16123)				$ 7.70
8	3371343		Housing, Hose				$ 44.36
9	W10831279		Cord, Power   (Replaces: 8566201)				$ 144.04
10	3378125		Protector-edge, Divider		Appelez-nous	-
11	WP3373329		Screw   (Replaces: 3373329)				$ 7.68
12	3371640		Shroud, Caster		Appelez-nous	-
13	3370544		Screw				$ 8.06
14	WP3373199		Panel, Top   (Replaces: 3373199)				$ 372.59
15	WP681414		Screw (2)   (Replaces: 304428)			Immediately	$ 7.85
17	WP8559933		Caster   (Replaces: 8559932)			Immediately	$ 98.56
18	30168LF		Adapter Faucet   (Replaces: 3374592)			Immediately	$ 12.15
19	WP681414		Screw   (Replaces: 3372525)			Immediately	$ 7.85
21	3370826		Screw (2)		Appelez-nous	-
22	3378126		Protector-edge, Divider		Appelez-nous	-
24	W10254984		Frame, Assembly   (Replaces: 8559928)				$ 155.56
25	3371635		Screw, 8-18 X 1/2		Appelez-nous	-
26	3371644		Screw, 8-18 X 5/8				$ 8.65
27	302251		Screw		Appelez-nous	-
	4396277		Moisture Barrier Kit (kit)				$ 41.17
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	675776		Custom Trim & Panel Kits (white)		Appelez-nous	-
	675809		Custom Trim & Panel Kits (biscuit)		Appelez-nous	-
	4396853		Vinyl Touch-up (4oz.) (silver Atlantis)				$ 38.22
	WP676455		Vinyl Touch-up (4oz.) (grey)   (Replaces: 676455)			Immediately	$ 39.58
	WP676453		Vinyl Touch-up (4oz.) (white)   (Replaces: 676453)			Immediately	$ 53.65
	4396840RC		Tip Tine Repair Kit (enough For Two Complete Dishracks) (silver Atlantis)   (Replaces: 4396854)			Immediately	$ 70.55
	4396840RC		Tip Tine Repair Kit (enough For Two Complete Dishracks) (grey)   (Replaces: 4396840)			Immediately	$ 70.55
	4396838RC		Tip Tine Repair Kit (enough For Two Complete Dishracks) (white)   (Replaces: 4396838)			Immediately	$ 70.55
	4378968		Floor Mounting Kit				$ 64.81
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	4318050		Heavy Duty Spring Kit (spring)				$ 23.68
	4378869		Side Panel Kits (almond)		Appelez-nous	-
	3385556		Drain Hose (12 Ft)			Immediately	$ 38.26
	4378867		Side Panel Kits (white)				$ 404.07
	4378868		Side Panel Kits (black)		Appelez-nous	-
	675788		Side Panel Kits (biscuit)		Appelez-nous	-
	675775		Custom Trim & Panel Kits (black)				$ 112.15
