Range Hood

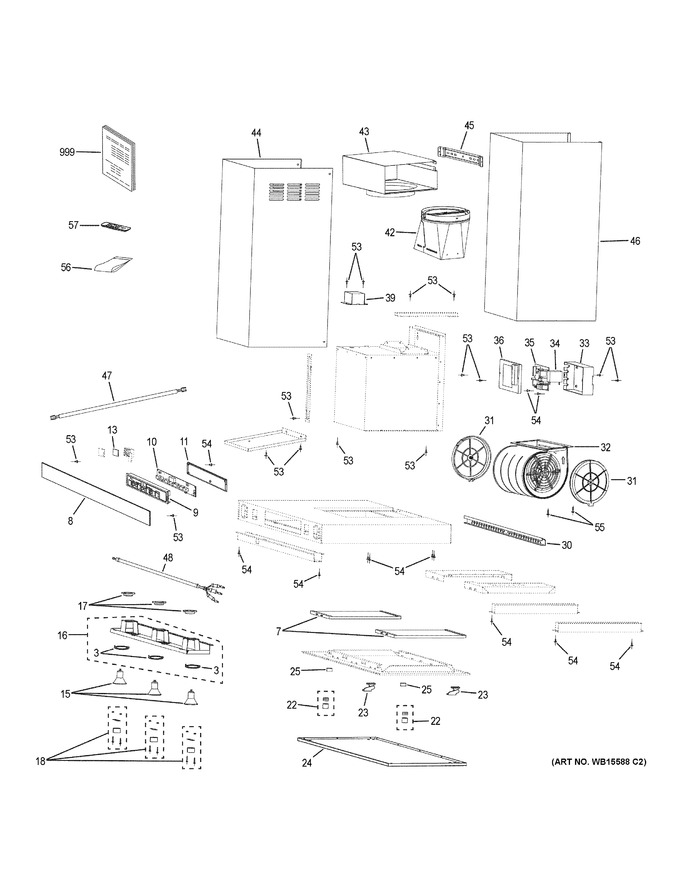

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WB02X30505		Bezel Bs		Appelez-nous	-
7	WB02X30549		Grease Filter		Appelez-nous	-
8	WB27X31591		Black Stainless Ui Touch Glass		Appelez-nous	-
9	WB02X30560		Ui Board Holder		Appelez-nous	-
10	WB27X30576		Ui Board		Appelez-nous	-
11	WB34X30561		Ui Board Holder Cover		Appelez-nous	-
13	WB27X29798		Board Wifi Cat Module		Appelez-nous	-
15	WB25X30548		Led Lamp		Appelez-nous	-
16	WB07X30514		Lamp Panel Asm Bs		Appelez-nous	-
17	WB02X30564		Rubber Ring		Appelez-nous	-
18	WB18X30566		Lamp Socket Asm		Appelez-nous	-
22	WB02X30569		Magnet		Appelez-nous	-
23	WB10X30568		Hinge		Appelez-nous	-
24	WB34X30531		Vent Cover Bs		Appelez-nous	-
25	WB02X30563		Magnet Rubber Cover		Appelez-nous	-
30	WB34X30556		Wall Mount Bracket		Appelez-nous	-
31	WB02X30511		Air Filter				$ 107.48
32	WB26X30510		Blower Motor Asm		Appelez-nous	-
33	WB02X30524		Power Board Holder		Appelez-nous	-
34	WB27X30535		Capacitor		Appelez-nous	-
35	WB27X32417		Power Board		Appelez-nous	-
35	WB27X30534		Power Board		Appelez-nous	-
36	WB34X30506		Power Board Holder Cover		Appelez-nous	-
39	WB02X30540		Junction Box		Appelez-nous	-
42	WB34X30571		Transition Duct And Damper Asm		Appelez-nous	-
43	WB34X30519		Recirculation Duct		Appelez-nous	-
44	WB34X30521		Upper Duct Cover Bs		Appelez-nous	-
45	WB34X30537		Duct Cover Bracket		Appelez-nous	-
46	WB34X30522		Lower Duct Cover Bs		Appelez-nous	-
47	WB18X30542		Ui Harness		Appelez-nous	-
48	WB18X30545		Lamp Harness		Appelez-nous	-
53	WB01X30509		Screw		Appelez-nous	-
54	WH02X27219		M Screw		Appelez-nous	-
55	WB01X30508		Screw		Appelez-nous	-
56	WB01X30552		Installation Hardware		Appelez-nous	-
57	WB02X30547		Remote Control		Appelez-nous	-
999	31-11075		Pm Template Wall Hood		Appelez-nous	-
999	49-80795		Pm Owners & Install		Appelez-nous	-
