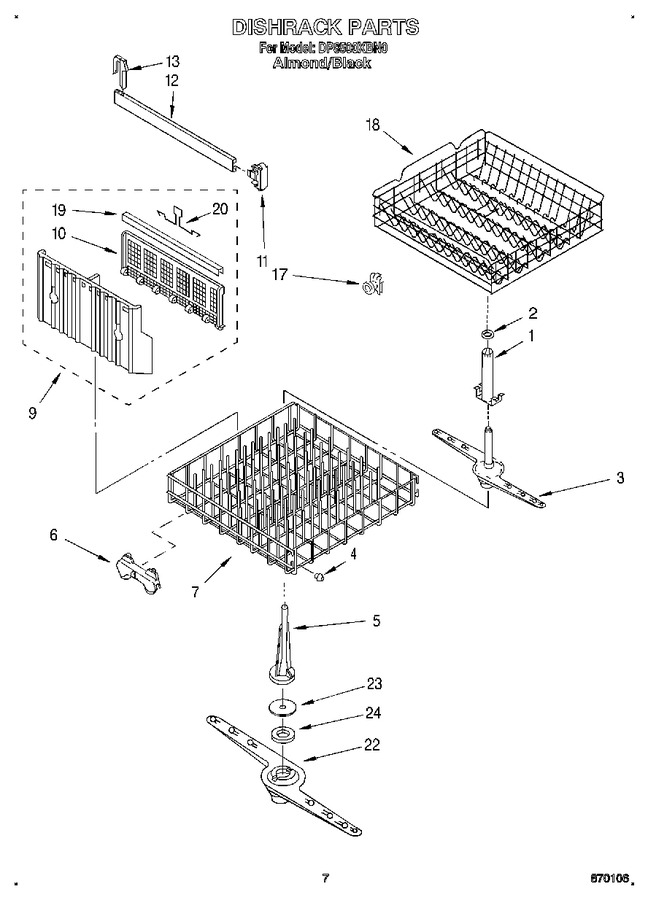

SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack, Literature


06 - Cabinet, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3368290		Support, Arm		Appelez-nous	-
2	303722		Clip				$ 5.75
3	3368300		Spray Arm, Upper		Appelez-nous	-
4	WP3385142		Bumper (2)   (Replaces: 3368006)				$ 94.82
5	300848		Tower, Pressure		Appelez-nous	-
6	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3369509)				$ 98.69
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 3370490)			Immediately	$ 188.14
9	3369488		Silverware Basket Assembly		Appelez-nous	-
10	3369485		Cover, Basket		Appelez-nous	-
11	300845		End Cap (front Or Rear)				$ 7.63
12	3369071		Track		Appelez-nous	-
13	3369046		Stop, Track (2)		Appelez-nous	-
17	3371581		Wheel And Axle Assembly (4)		Appelez-nous	-
18	W11169039		Dishrack, Upper   (Replaces: 3371663)			Immediately	$ 203.14
19	717528		Trim, Basket		Appelez-nous	-
20	300086		Handle, Basket		Appelez-nous	-
22	3369347		Sprayarm, Lower		Appelez-nous	-
23	3367910		Cap, Nozzle				$ 39.70
24	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
24	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
24	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 38.83
24	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
24	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 48.32
24	4317925		Side Panel Kit (white)		Appelez-nous	-
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
24	719576		Bearing, Nozzle				$ 7.48
24	285006		Paint, Spray 13 Oz. (black)				$ 59.89
24	350942		Primer (white)   (Replaces: 206922)				$ 94.14
24	350941		Leveler (thinner)		Appelez-nous	-
24	978883		Almond (uncut)		Appelez-nous	-
24	799340		Black (uncut)		Appelez-nous	-
24	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
24	4317926		Avocado		Appelez-nous	-
24	4317927		Gold		Appelez-nous	-
24	4317929		Side Panel Kit: (almond)		Appelez-nous	-
24	4317930		Toast		Appelez-nous	-
24	4317931		Platinum		Appelez-nous	-
24	4318050		Door Spring Kit (heavy Duty)				$ 23.68
24	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	LIT3369678		Instructions, Installation		Appelez-nous	-
	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
	LIT3373631		Wiring Diagram		Appelez-nous	-
	LIT3373739		Guide, Use & Care		Appelez-nous	-
	LIT3373480		Energy Guide		Appelez-nous	-
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
