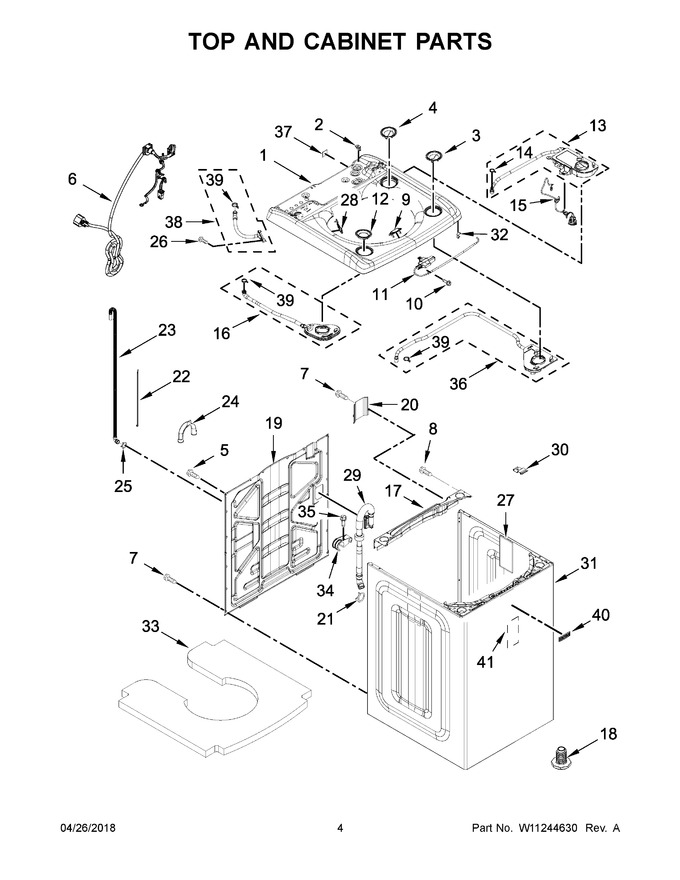

03 - Top And Cabinet Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10885628		Top (white)   (Replaces: W10747122)				$ 604.86
2	W10711050		Grommet, Screw		Appelez-nous	-
3	W10712202		Bezel, Fabric Softener Dispenser (white)				$ 27.26
4	W10712204		Bezel, Bleach Dispenser (white)				$ 27.56
5	W11685943		Screw   (Replaces: W10660565)				$ 13.47
6	W10734500		Power Cord				$ 117.42
7	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
8	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
9	W10687095		Bezel, Lid Lock (white)				$ 26.86
10	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
11	W11188327		Assembly, Lid Lock   (Replaces: W10727693)			Immediately	$ 238.85
12	W10712200		Bezel, Detergent Dispenser (white)		Appelez-nous	-
13	W10749370		Dispenser Assembly, Bleach (white)				$ 98.11
14	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.94
15	W11553311		Light Assembly, Basket   (Replaces: W10591941)				$ 29.93
16	W11290644		Dispenser Assembly, Detergent (white)   (Replaces: W10749363)				$ 92.60
17	W10463933		Channel, Front Rear		Appelez-nous	-
18	W11204543		Foot Assembly, Leveling   (Replaces: W10715265)				$ 11.47
19	W10464765		Panel, Rear		Appelez-nous	-
20	W10676061		Cover, Harness				$ 33.09
21	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 7.93
22	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
23	W11244231		Hose, Outer Drain   (Replaces: W11199768)			Immediately	$ 28.86
24	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 75.16
25	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
26	W11700520		Screw   (Replaces: 3400061)				$ 12.85
27	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 7.54
28	W10522542		Bezel, Fresh Fill (chrome)		Appelez-nous	-
29	W11246418		Hose, Internal Drain   (Replaces: W10786890)				$ 51.99
30	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 16.95
31	W10753693		Cabinet (white)		Appelez-nous	-
32	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.70
33	W10825092		Absorber, Sound				$ 84.82
34	W10652932		Clip, Hose				$ 38.69
35	WPW10004910		Screw   (Replaces: W10004910)				$ 7.55
36	W11747575		Dispenser Assembly, Fabric Softener (white)   (Replaces: W10749366)				$ 99.65
37	W10161707		Top, Foam Seal		Appelez-nous	-
38	W10749373		Nozzle Assembly, Fresh Fill		Appelez-nous	-
39	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.94
40	WPW10612926		Badge   (Replaces: W10612926)			Immediately	$ 35.64
41	W11197416		Absorber, Impact   (Replaces: W10688364)			Immediately	$ 21.04
12A	W10749749		Bezel, Detergent Dispenser (grey)				$ 27.53
13A	W10749756		Dispenser Assembly, Bleach (grey)				$ 103.33
16A	W11290602		Dispenser Assembly, Detergent (grey)   (Replaces: W10749750)				$ 95.90
1A	W10747123		Top (chrome Shadow)		Appelez-nous	-
31A	W10763699		Cabinet (chrome Shadow)				$ 427.67
36A	W11678129		Dispenser Assembly, Fabric Softener (grey)   (Replaces: W10749753)				$ 112.85
3A	W10749759		Bezel, Fabric Softener Dispenser (grey)		Appelez-nous	-
4A	W10749769		Bezel, Bleach Dispenser (grey)				$ 27.58
9A	W10747826		Bezel, Lid Lock (grey)				$ 22.45
