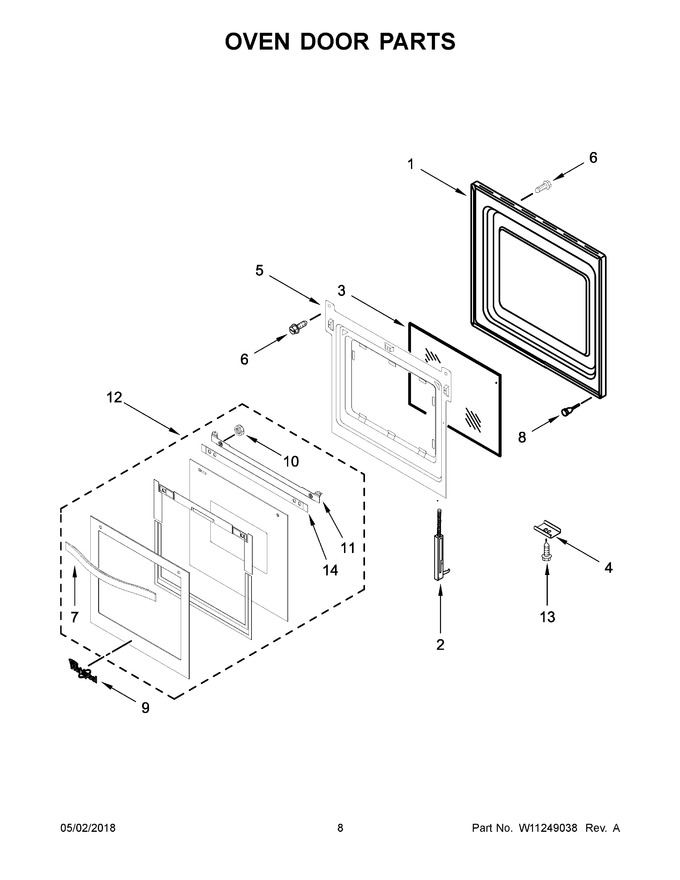

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 8303698)				$ 351.88
2	9760564		Hinge, Door (left)		Appelez-nous	-
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W10789031		Clip, Retainer (black)		Appelez-nous	-
5	4457130		Retainer, Glass		Appelez-nous	-
6	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
7	W11544132		Assembly, Door Handle (black)   (Replaces: W10684319)		Appelez-nous	-
8	4448520		Bumper, Door				$ 22.25
9	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13
10	WP488130		Nut   (Replaces: 488130)				$ 7.32
11	W10708952		Bracket, Handle		Appelez-nous	-
12	W10804159		Assembly, Door (black)   (Replaces: W10692585)		Appelez-nous	-
13	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
14	8300853		Seal, Door Top		Appelez-nous	-
12A	W10804163		Assembly, Door (white)   (Replaces: W10692586)		Appelez-nous	-
2A	WP9760563		Hinge, Door (right)   (Replaces: 9760563)				$ 93.66
4A	W10789030		Clip, Retainer (white)		Appelez-nous	-
7A	W10684321		Assembly, Door Handle (white)		Appelez-nous	-
9A	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 63.13
