01 - Cover Sheet

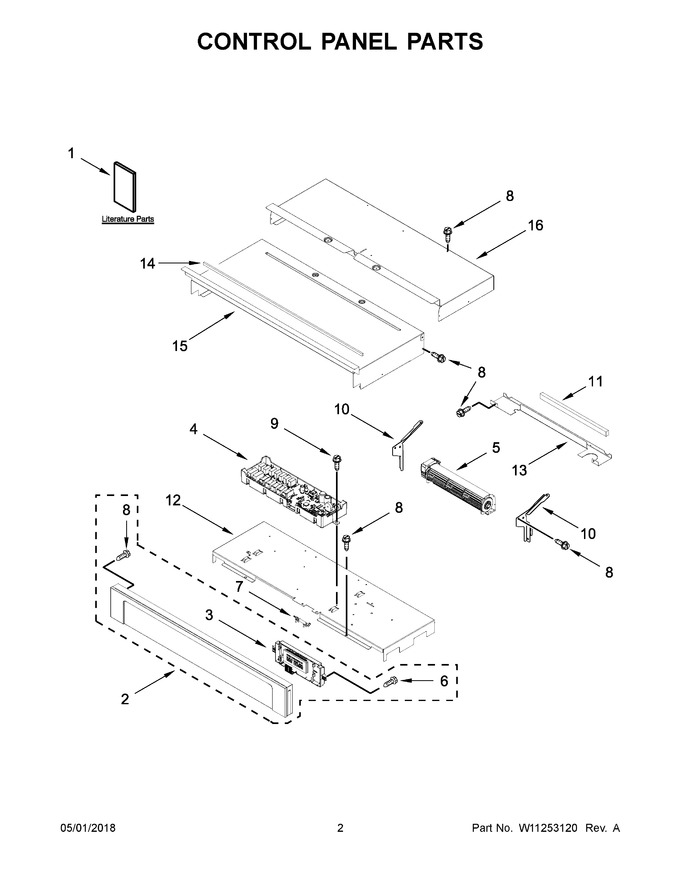

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10795444 | Guide, Use & Care |
|
- | |||||
| 2 | W10864148 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10812330) |
|
$ 571.98 | |||||
| 3 | W10803991 | Interface (maxwell), User Board (Replaces: W10752315) |
|
Immediately | $ 420.04 | ||||
| 4 | W10841692 | Control (maxwell), Main (Replaces: W10759197) |
|
Immediately | $ 461.14 | ||||
| 5 | W11713858 | Blower (Replaces: W11200130) |
|
Immediately | $ 348.59 | ||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10545255) |
|
Immediately | $ 27.91 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10347650 | Tray, Electronic |
|
$ 126.08 | |||||
| 13 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 14 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 15 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 16 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10674133 | Instructions, Installation |
|
- | |||||
| 1B | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W10796080 | Sheet, Tech |
|
- | |||||
| 2A | W10864151 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10812332) |
|
$ 862.89 | |||||
| 2B | W10812331 | Assembly, Control Panel (includes Overlay) (black Ice) |
|
$ 490.52 | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | WP4450952 | Conduit, Single (Replaces: 4450952) |
|
$ 240.98 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W11157775 | Harness, Eol (mrc) |
|
$ 231.69 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 118.98 | |||||
| NI | W11136115 | Harness, Main |
|
$ 247.58 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10352612) |
|
$ 12.17 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 |
