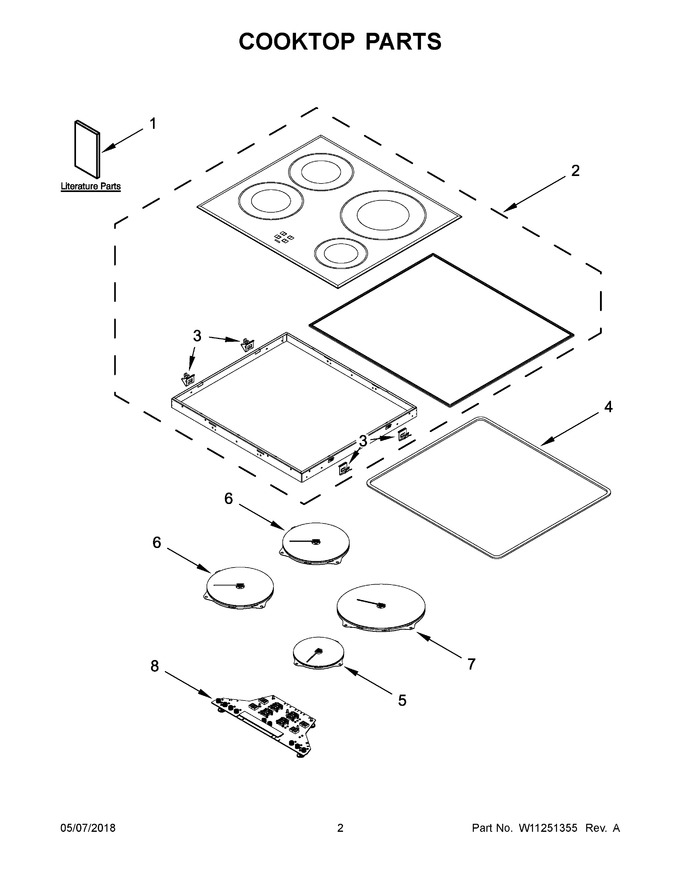

02 - Cooktop Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 501971901250 | Installation Instructions |
|
- | |||||
| 2 | W10483502 | Cooktop, Glass (black) |
|
- | |||||
| 3 | W11791261 | Clip, Cooktop (Replaces: W11258211) |
|
$ 10.27 | |||||
| 4 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 163.56 | ||||
| 5 | W11672508 | Element (145mm 1800/1400w) (right Front) (Replaces: W10396547) |
|
$ 257.23 | |||||
| 6 | W10483505 | Element (180mm 2500/1800w) (left Front & Left Rear) |
|
$ 105.80 | |||||
| 7 | WPW10328391 | Element (240mm 3700/2300w) (right Rear) (Replaces: W10328391) |
|
Immediately | $ 374.30 | ||||
| 8 | W10533017 | Board, User Interface |
|
$ 328.84 | |||||
| 1A | 400011035254 | Use And Care Guide |
|
- |
