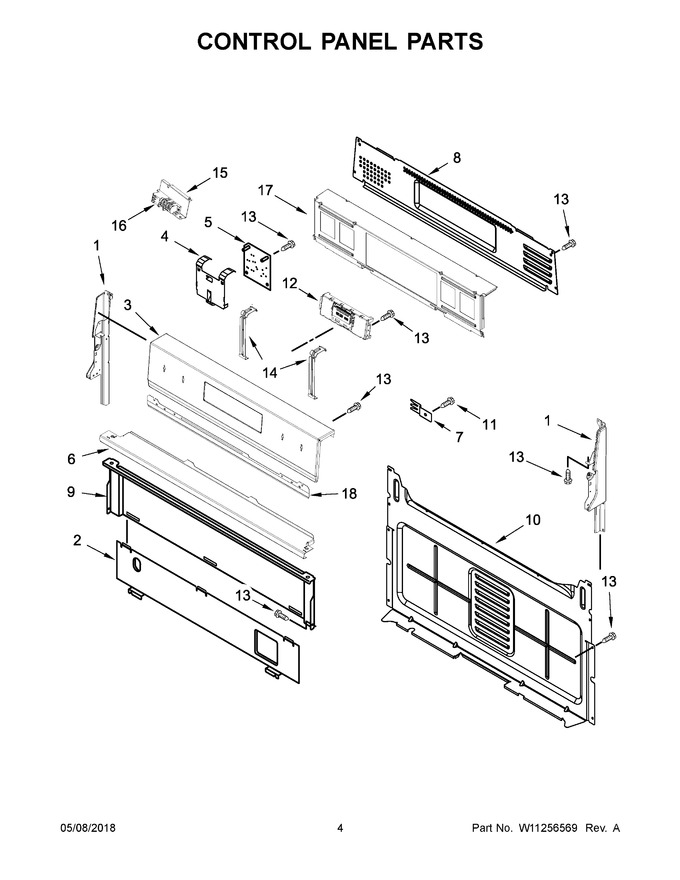

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	8053505		Shield, Heat				$ 165.89
3	W11177731		Panel, Control (black)   (Replaces: W10869986)				$ 344.96
4	W10762981		Bracket, Mounting				$ 76.42
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 167.90
8	W10198745		Cover, Upper				$ 128.90
9	W10192841		Shield, Heat				$ 106.69
10	W10184251		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W11258611		Electronic, Control (lcx) (black)   (Replaces: W11204531)				$ 512.96
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W10856361		Bracket, Control		Appelez-nous	-
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
17	W10901802		Panel, Backer				$ 96.79
18	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 222.43
12A	W11258612		Electronic, Control (lcx) (white)   (Replaces: W11204532)				$ 564.26
18A	W11051311		Bracket, Eye Brow (white)				$ 92.64
1A	W11213292		Endcap (black (right))				$ 71.65
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 104.70
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 104.70
3A	W11177733		Panel, Control (white)   (Replaces: W10869987)				$ 333.18
