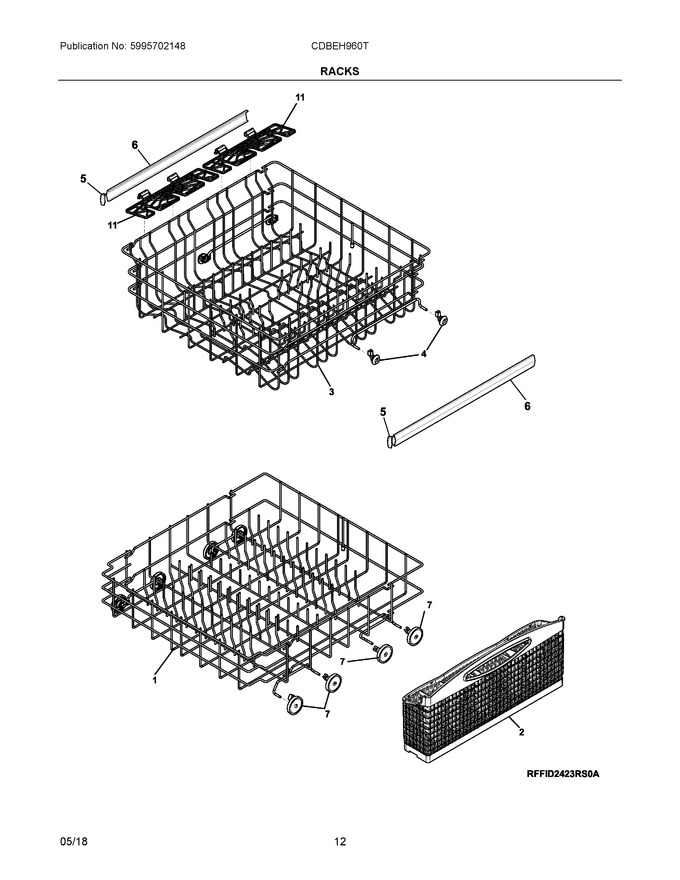

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533200 | Rack Assembly, Lower, Nylon, Grey, W/wheels (Replaces: 154875204) |
|
$ 168.68 | |||||
| 2 | 5304535382 | Basket, Silverware (Replaces: 5304506523) |
|
Immediately | $ 28.25 | ||||
| 3 | 140229954072 | Rack Assembly, Upper (Replaces: 5304498212) |
|
Immediately | $ 161.25 | ||||
| 4 | 154522902 | Wheel & Bushing Assy, Grey, Upper Rack, (8) |
|
$ 43.93 | |||||
| 5 | 5304506510 | Cap, Rack Slide |
|
Immediately | $ 8.03 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 14.17 | ||||
| 11 | 5304532945 | Cup Shelf, Stemware (Replaces: 5304506507) |
|
Immediately | $ 8.24 | ||||
| NI | 5304507625 | Nameplate, Upper Rack, Crosley |
|
- |
