SELECT A DIAGRAM

01 - Cover Sheet

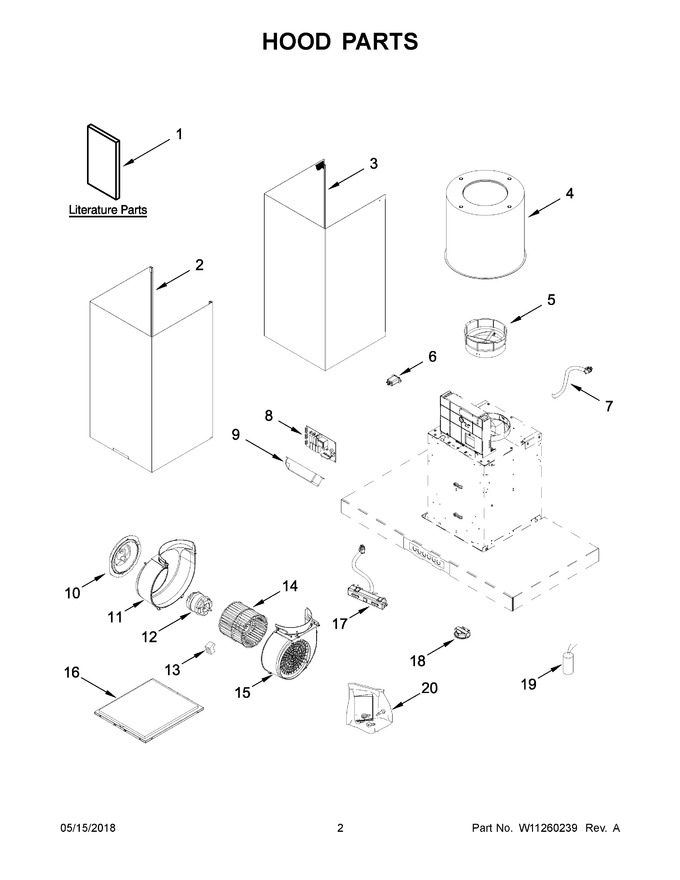

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11160327		Use And Care Guide		Appelez-nous	-
2	W11260655		Chimney, Lower				$ 381.87
3	W11260656		Chimney, Upper				$ 672.98
4	W11197817		Filter, Charcoal		Appelez-nous	-
5	W11260619		Damper, Hood		Appelez-nous	-
6	W11260650		Filter, Noise				$ 81.64
7	W11260676		Harness, Main				$ 117.73
8	W11100663		Variator, Electronic   (Replaces: W11099805)				$ 274.64
9	W11282989		Driver, Led   (Replaces: W10716819)				$ 263.35
10	W11260649		Grille, Blower		Appelez-nous	-
11	W11260665		Conveyor (left Half)		Appelez-nous	-
12	W11260648		Motor, Fan				$ 355.40
13	W11260681		Cover, Cable Box		Appelez-nous	-
14	W11260620		Blade, Fan				$ 146.73
15	W11260663		Conveyor (right Half)		Appelez-nous	-
16	W11261149		Filter, Grease   (Replaces: W11260651)				$ 351.26
17	W11261150		Control, Electronic   (Replaces: W11260661)				$ 355.89
18	W11260654		Light, Led				$ 150.75
19	8186677		Capacitor (25 Mf)				$ 235.77
20	W11260666		Hardware, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
