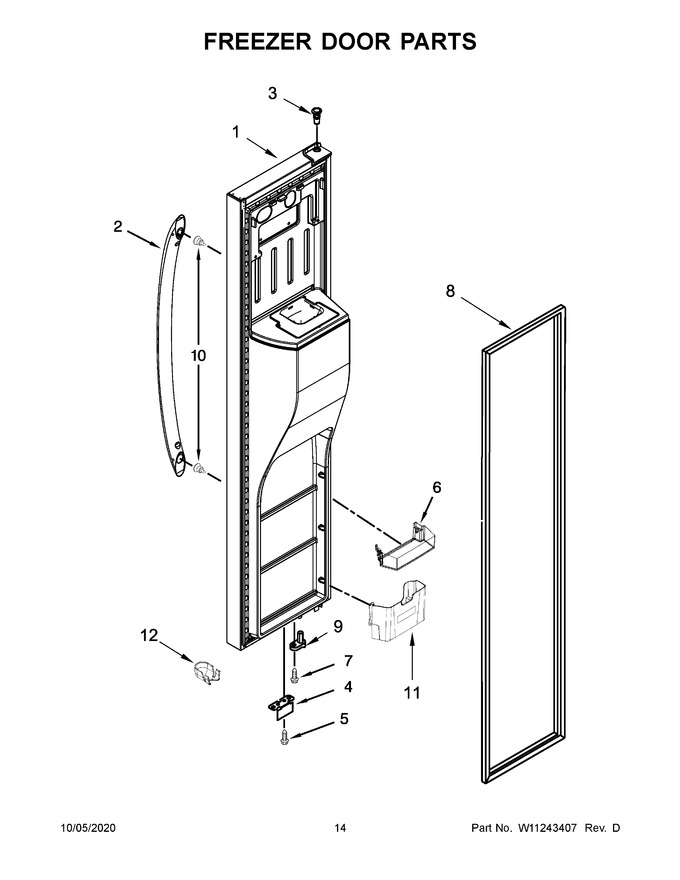

08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11026430		Door, Freezer (includes Door Gasket) (white)   (Replaces: W11026430)		Appelez-nous	-
2	W10918556		Handle (white)   (Replaces: W10891380)				$ 189.54
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop (black)   (Replaces: W10900531)			Immediately	$ 18.67
5	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
6	W11226457		Trivet   (Replaces: W11034206)		Appelez-nous	-
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159074		Gasket, Door (beige)   (Replaces: W10912123)				$ 325.70
9	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 14.02
10	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
11	W11318233		Trivet   (Replaces: W11223483)		Appelez-nous	-
12	W11566769		Cover, Wire   (Replaces: W11047371)		Appelez-nous	-
1A	LW11026433		Door, Freezer (includes Door Gasket) (black)   (Replaces: W11026433)		Appelez-nous	-
1B	LW11026429		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W11026429)		Appelez-nous	-
1C	LW11207738		Door, Freezer (includes Door Gasket) (black Cast)   (Replaces: W11207738)		Appelez-nous	-
2A	W10918557		Handle (black)   (Replaces: W10891379)				$ 189.54
2B	W10879677		Handle (stainless)   (Replaces: W10838130)			Immediately	$ 215.42
8A	2159082		Gasket, Door (black)   (Replaces: W10912133)				$ 332.49
8B	W10136735		Gasket, Door (grey)   (Replaces: W10912081)				$ 315.51
