Body Parts


Escutcheon & Door Assembly


Motor-pump Mechanism

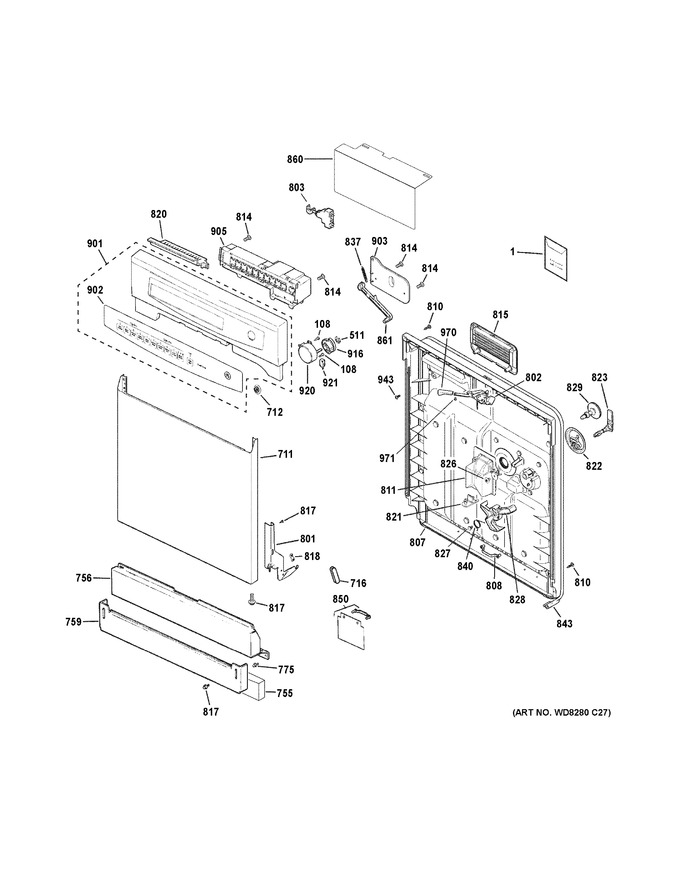

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-31570		Pm Install Instructions		Appelez-nous	-
1	49-55114		Pm Owners Manual		Appelez-nous	-
1	49-55113		Pm Quick Start Guide		Appelez-nous	-
1	31-30694		Pm Mini Manual		Appelez-nous	-
108	WR1X1718		Screw 6-20 Ab Pa 1/2 Ss		Appelez-nous	-
511	WD2X438		E Ring		Appelez-nous	-
711	WG04F01726		Panel Front- Long Black   (Replaces: WD31X10024)				$ 77.69
712	WD34X11692		Badge		Appelez-nous	-
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 5.72
755	WD27X21334		Insulation Toe Kick		Appelez-nous	-
756	WG04F01716		Panel Access Finished Bk   (Replaces: WD27X10223)				$ 51.54
759	WG04L00718		Panel Toe Kick Black   (Replaces: WD27X10068)				$ 34.31
775	WD02X10126		Scr 10-16 Hxw 3/8 S		Appelez-nous	-
801	WD14X10029		Arm Hinge Lh		Appelez-nous	-
801	WD14X10030		Arm Hinge Rh		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 50.11
803	WD06X10009		Switch Interlock Asm		Appelez-nous	-
807	WG04L00152		Door Inner   (Replaces: WD31X10004)				$ 79.14
808	WD01X10110		Clip Harness		Appelez-nous	-
810	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.57
811	WG04F01660		Kit Rinse Aid Dispenser   (Replaces: WD12X10264)				$ 65.80
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WD12X10026		Vent		Appelez-nous	-
817	WD02X10162		Scr 8-32 Hxp 1/4 S		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
820	WD1X1490		Vent Pad		Appelez-nous	-
821	WD01X10415		Clip Rinse Aid Tank		Appelez-nous	-
822	WD12X24237		Cover Det Cup		Appelez-nous	-
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 52.67
826	WD02X10130		Scr 8-18 B Por 1/4 Ss		Appelez-nous	-
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10011)				$ 51.53
829	WD12X24238		Cap Fill		Appelez-nous	-
837	WD03X10034		Spring Timer Lever		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.57
843	WG04L00216		Door Gasket   (Replaces: WD08X10057)			Immediately	$ 40.68
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
860	WD01X21838		Drip Shield		Appelez-nous	-
861	WD12X436		Lever Timer		Appelez-nous	-
901	WD34X11690		Escutcheon		Appelez-nous	-
902	WD34X24203		Graphic & Insert Asm		Appelez-nous	-
903	WD12X10182		Cover Detergent Trip Mec		Appelez-nous	-
905	WD21X22194		Control Asm		Appelez-nous	-
916	WD16X319		Cam D Cup		Appelez-nous	-
920	WD26X80		Motor		Appelez-nous	-
921	WD21X767		Switch Sensor		Appelez-nous	-
943	WD02X10218		Scr 8-16x1/2 Stn Stl		Appelez-nous	-
970	WG04L00703		Knob Latch Handle Bk   (Replaces: WD9X351)			Immediately	$ 5.72
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-
