Diagram # Part Number Description Series Availability Ships Price Add to Cart
502 WW02A00031 Screw # 10   (Replaces: WE2M174) In-Stock Immediately $ 3.97

504 WG04F02270 Thermostat Hi-limit   (Replaces: WE4M137) In-Stock Immediately $ 14.19

507 WG04F03775 Thermostat Bias Ctr Inlt   (Replaces: WE4M181) In-Stock Immediately $ 25.33

508 WE0X181L Shaft Appelez-nous -
511 WW02A00019 Shaft & Bracket Ass'y   (Replaces: WE3M33) In-Stock Immediately $ 38.10

526 WE21M40 Drum Asm 24" Appelez-nous -
528 WE21M39 Baffle Appelez-nous -
530 LS2-290 Thermostat   (Replaces: WE4M80) In-Stock Immediately $ 27.90

534 WW01A00456 Screw #10   (Replaces: WE2M163) In-Stock Immediately $ 3.97

602 WE14M193 Diffuser Gas Asm Appelez-nous -
3106 WE1M462 Sleeve Drum Special Order $ 38.53

3127 WG04F00001 O Ring   (Replaces: WE1M461) Special Order $ 28.98

3443 WW01A00097 Scr 8-18 Ab Ihw 7/16 Sn   (Replaces: WH2X1217) Special Order $ 3.97


    View Diagram in Separate Window     Print Icon   Print Part List

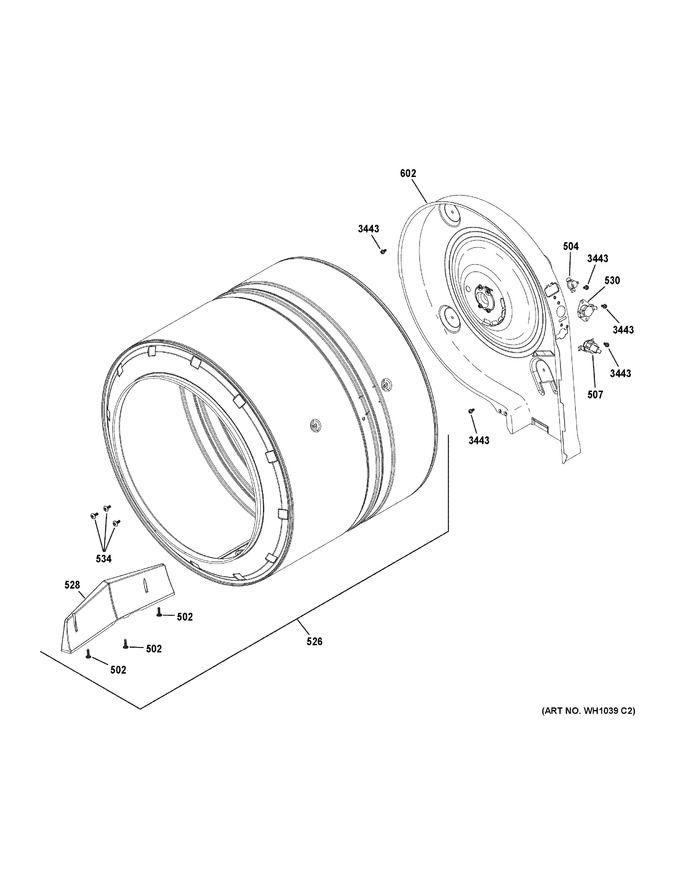

Diagram for GUD24GSSM0WW
