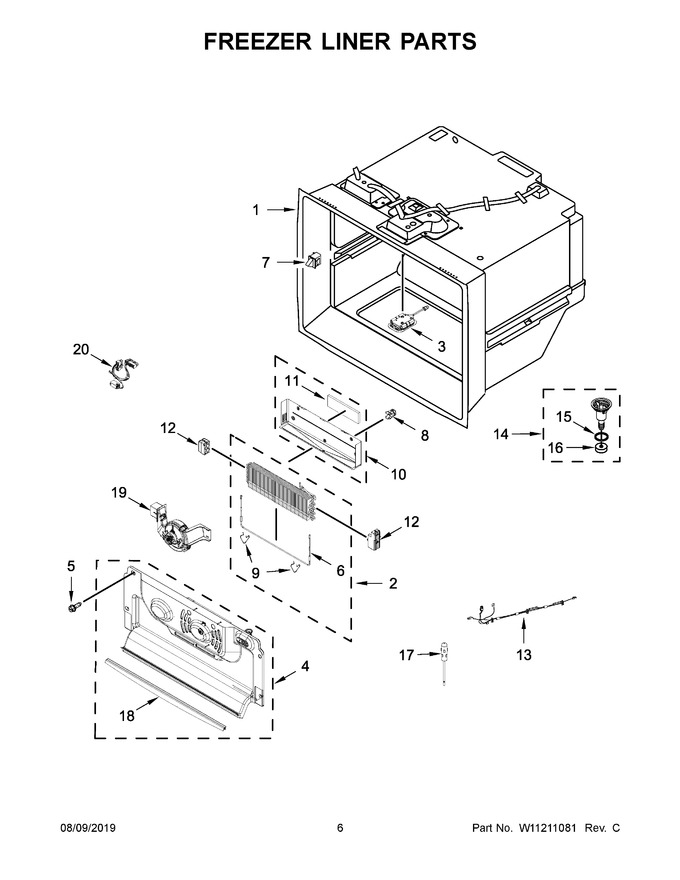

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11099748 | Assembly, Evaporator (Replaces: W11032200) |
|
Immediately | $ 296.67 | ||||
| 3 | W11683243 | Assembly, Led Light Module (Replaces: W10843353) |
|
Immediately | $ 242.92 | ||||
| 4 | W11394920 | Assembly, Evaporator Cover (includes Fan Motor And Wire Assembly) (Replaces: W10772353) |
|
Immediately | $ 299.79 | ||||
| 5 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 6 | W11700340 | Heater, Defrost (Replaces: W10668195) |
|
Immediately | $ 96.66 | ||||
| 7 | W11291142 | Switch, Light (Replaces: W10847855) |
|
$ 32.99 | |||||
| 8 | 10623002 | Clip, Evaporator |
|
$ 10.90 | |||||
| 9 | W10683507 | Clip, Defrost Heater |
|
- | |||||
| 10 | W10668191 | Shield, Heat |
|
- | |||||
| 11 | W10683540 | Gasket, Drip Tray Rear |
|
$ 22.25 | |||||
| 12 | W10668201 | Dam, Air (left Hand) |
|
$ 71.26 | |||||
| 13 | W11614809 | Assembly, Evaporator Heater Wire (includes Thermistor) (Replaces: W10858452) |
|
Immediately | $ 107.37 | ||||
| 14 | W10503218 | Assembly, Drain Funnel |
|
Immediately | $ 16.78 | ||||
| 15 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 16 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.00 | |||||
| 17 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 30.24 | ||||
| 18 | W10770923 | Seal, Crisp Front |
|
$ 25.70 | |||||
| 19 | W11407678 | Assembly, Icebox Fan (Replaces: W10685479) |
|
Immediately | $ 259.76 | ||||
| 20 | W10911358 | Assembly, Evaporator Jumper Wire |
|
$ 122.51 | |||||
| 12A | W10668198 | Dam, Air (right Hand) |
|
$ 47.18 |
