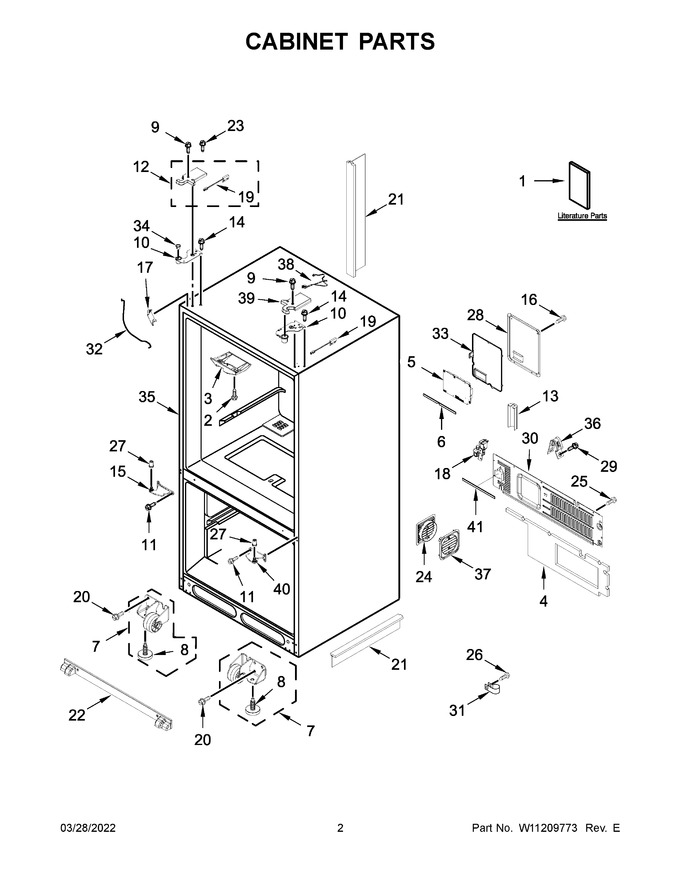

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11190777		Tech Sheet (english)		Appelez-nous	-
2	W10854958		Screw   (Replaces: 12990302)				$ 7.90
3	W10840312		Block, Pivot				$ 26.05
4	W11820443		Pad, Sound   (Replaces: W10838044)				$ 103.71
5	W11533213		Control, Electronic (includes Dispenser User Interface)			Immediately	$ 684.11
6	W10415341		Gasket, Hv Box				$ 37.00
7	W11820446		Assembly, Roller (left Hand)   (Replaces: W11084045)			Immediately	$ 96.12
8	W10846099		Brake, Roller				$ 22.31
9	WP98165		Screw   (Replaces: 12990521)				$ 8.57
10	W11032616		Hinge, Top (left Hand)				$ 76.44
11	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.72
12	W11225850		Cover, Top Hinge Left Hand (includes Foil) (black)   (Replaces: W10868791)				$ 167.45
13	W10208592		Cover, Valve		Appelez-nous	-
14	W11126052		Screw   (Replaces: W10731474)			Immediately	$ 14.73
15	W10691674		Hinge, Center Left Hand (black)				$ 90.18
16	W11686675		Screw   (Replaces: 12990702)				$ 14.27
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
18	W11312191		Valve, Water   (Replaces: W11095287)			Immediately	$ 188.31
19	W11221357		Switch, Reed   (Replaces: W11105994)				$ 61.33
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
21	W10878918		Divider, Air (rear)				$ 52.08
22	W10887785		Grille, Toe (black)   (Replaces: W10821308)				$ 128.51
23	W11214483		Screw   (Replaces: 12992601)				$ 14.72
24	W10835554		Assembly, Outer Air Tunnel (includes Gasket) (black)		Appelez-nous	-
25	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
26	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
27	W11223833		Bushing   (Replaces: W10831587)			Immediately	$ 15.83
28	W10754144		Cover, Control Box				$ 86.16
29	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
30	W10669259		Cover, Unit		Appelez-nous	-
31	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
32	W10853597		Tube, Icemaker Water (includes Seal)				$ 129.66
33	W10768379		Lid, Hv				$ 83.60
34	W10705239		Retainer, Door			Immediately	$ 51.64
35	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 14.06
37	W10835557		Assembly, Inner Air Tunnel (includes Gasket) (black)		Appelez-nous	-
38	W10858468		Assembly, Jumper Wire				$ 136.12
39	W10819301		Cover, Top Hinge Right Hand (black)				$ 58.03
40	W10691700		Hinge, Center Right Hand (black)				$ 90.01
41	W11312190		Gasket   (Replaces: W11243631)		Appelez-nous	-
10A	W11032620		Hinge, Top (right Hand)				$ 73.86
12A	W11371720		Cover, Top Hinge Left Hand (includes Foil) (grey)   (Replaces: W10921527)				$ 186.29
15A	W10816322		Hinge, Center Left Hand (grey)				$ 81.84
17A	W10868482		Cover, Corner (grey)		Appelez-nous	-
1A	W11190778		Tech Sheet (french)		Appelez-nous	-
1B	W10815169		Use And Care Guide		Appelez-nous	-
1C	W11112950		Energy Guide		Appelez-nous	-
21A	W10878920		Divider, Air (bottom)				$ 49.83
22A	W10887787		Grille, Toe (grey)   (Replaces: W10821309)				$ 128.03
24A	W10838744		Assembly, Outer Air Tunnel (includes Gasket) (grey)		Appelez-nous	-
32A	W10853599		Tube, Dispenser Water (includes Seal)				$ 128.11
37A	W10838745		Assembly, Inner Air Tunnel (includes Gasket) (grey)		Appelez-nous	-
39A	W11204565		Cover, Top Hinge Right Hand (grey)   (Replaces: W10819300)				$ 173.32
40A	W10816323		Hinge, Center Right Hand (grey)				$ 81.42
7A	W11763410		Assembly, Roller (right Hand)   (Replaces: W11084046)				$ 38.66
