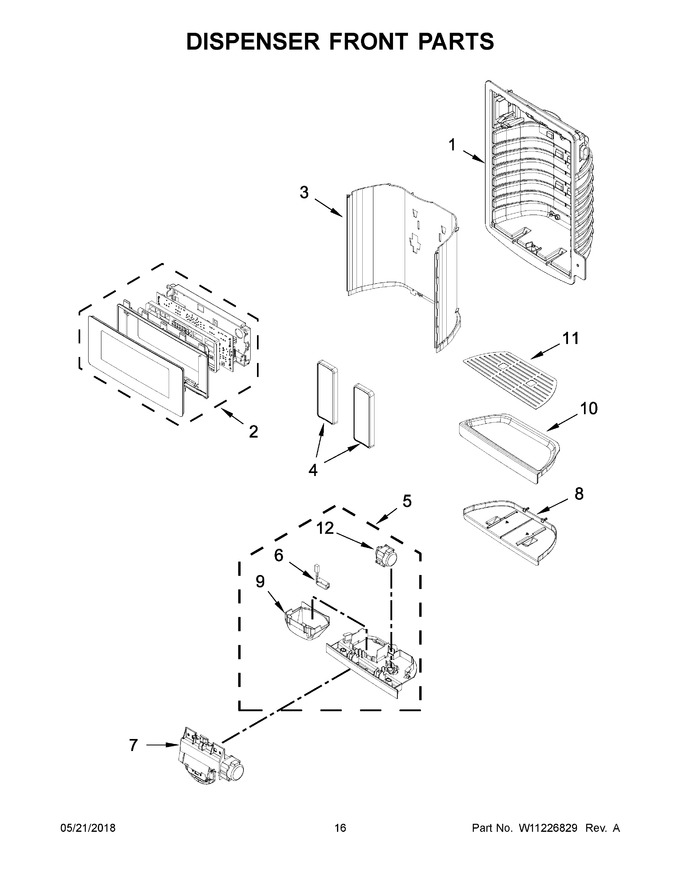

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11405309		Assembly, User Interface (black)   (Replaces: W11171229)				$ 341.46
3	W10486345		Wall, Dispenser False (white)		Appelez-nous	-
4	W10317250		Assembly, Pad (white)				$ 321.84
5	W10836794		Assembly, Separator   (Replaces: W10394101)				$ 192.69
6	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
7	WPW10606117		Assembly, Ice Door   (Replaces: W10606117)				$ 192.28
8	W10347142		Insert, Drip Tray (white)		Appelez-nous	-
9	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
10	W10347140		Tray, Dispenser (white)		Appelez-nous	-
11	WPW10542708		Grate, Drip Tray   (Replaces: W10542708)				$ 79.54
12	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10A	W10400884		Tray, Dispenser (black)				$ 69.16
3A	W10486344		Wall, Dispenser False (black)				$ 134.00
4A	W11561037		Assembly, Pad (black)   (Replaces: W10317253)				$ 82.93
8A	W10400889		Insert, Drip Tray (black)				$ 50.01
