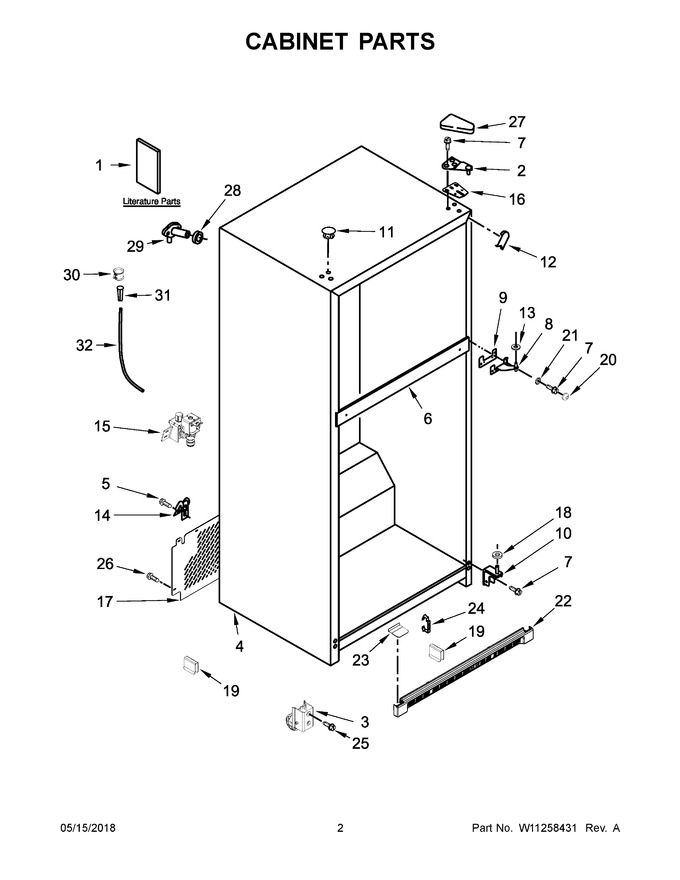

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10737602 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10725960) |
|
$ 114.75 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 10 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 11 | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 12 | W11219642 | Filler, Wrapper (grey) (Replaces: W11189126) |
|
Immediately | $ 12.85 | ||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 15 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 189.89 | |||||
| 16 | W11169703 | Shim, Top Hinge (white) (Replaces: 2221885) |
|
$ 15.79 | |||||
| 17 | W11307290 | Cover, Unit (Replaces: W10609390) |
|
- | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 20 | W10849198 | Dome Cap (grey) (Replaces: W10679139) |
|
$ 19.22 | |||||
| 21 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 11.27 | |||||
| 22 | W10860791 | Grille (grey) (Replaces: W10592144) |
|
$ 84.36 | |||||
| 23 | W10468611 | Cover, Toe Grille (grey) |
|
Immediately | $ 102.06 | ||||
| 24 | 2254385 | Clip, Grille |
|
$ 88.87 | |||||
| 25 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 26 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 27 | W10853622 | Cover, Top Hinge (grey) (Replaces: 2254510) |
|
Immediately | $ 82.46 | ||||
| 28 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 29 | WPW10601149 | Fitting, Water Tube (Replaces: W10601149) |
|
Immediately | $ 8.56 | ||||
| 30 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 65.90 | |||||
| 31 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 32 | W10823511 | Tube, Water (Replaces: 2181944) |
|
Immediately | $ 32.41 | ||||
| 1A | W10674106 | Use & Care Guide |
|
- | |||||
| 1B | W11095232 | Energy Guide |
|
- |
