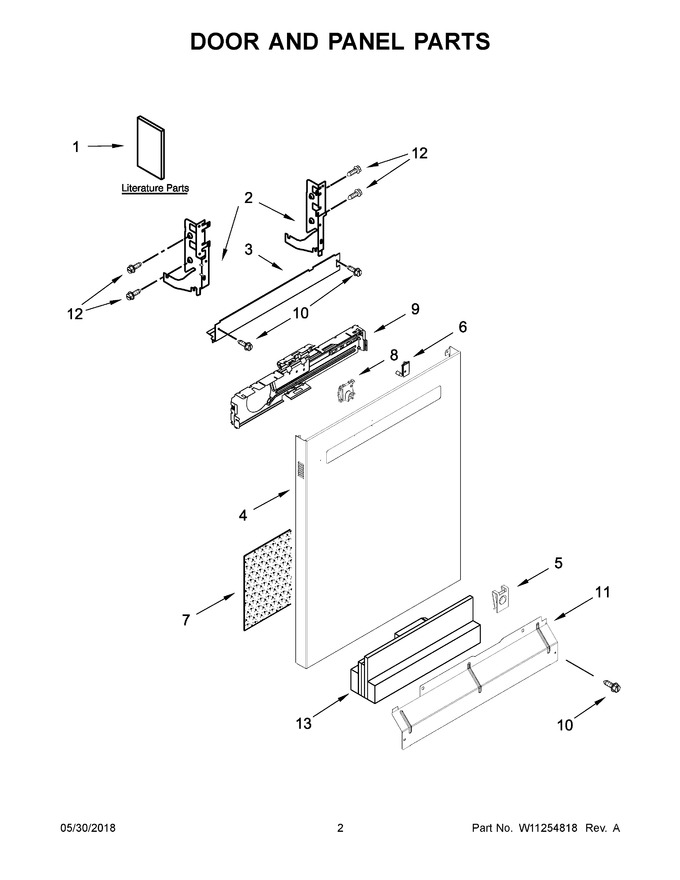

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | W11085691 | Panel Front (includes Items 6 & 8) (stainless) (Replaces: W11030493) |
|
$ 412.29 | |||||
| 5 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 6 | W10901145 | Light Pipe (Replaces: W10854504) |
|
$ 77.23 | |||||
| 7 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 8 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 9 | W11116870 | Bracket, Control (Replaces: W10641745) |
|
$ 89.95 | |||||
| 10 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 11 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 1A | W11236381 | Energy Guide |
|
- | |||||
| 1B | W11172665 | Use & Care Guide |
|
- | |||||
| 1C | W10867183 | Tech Sheet, English |
|
- | |||||
| 1D | W10867186 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
