SELECT A DIAGRAM

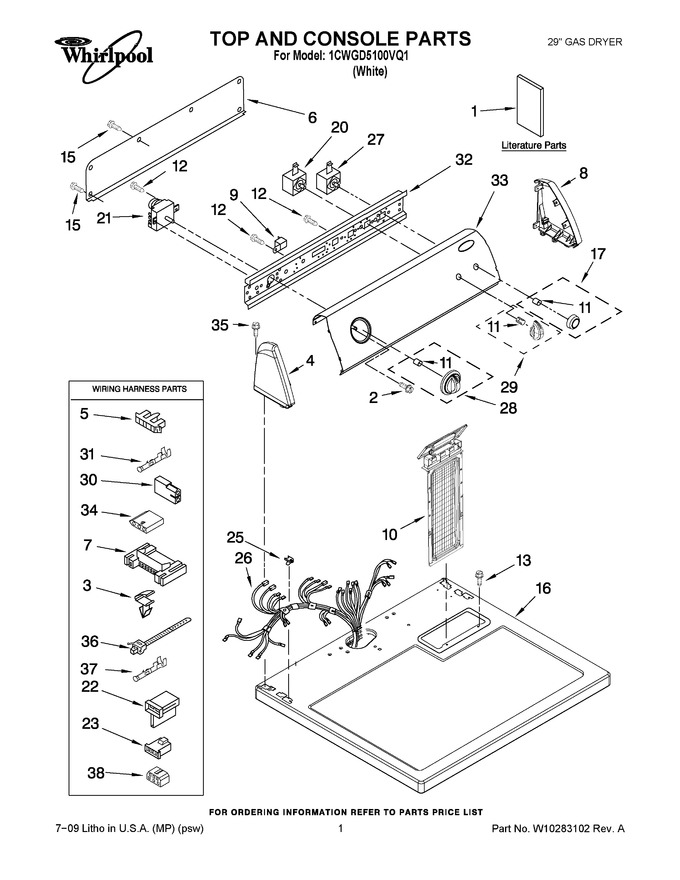

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185985		Wiring Diagram		Appelez-nous	-
1	W10042960		Sheet, Cycle Feature		Appelez-nous	-
1	W10131643		Installation Instructions		Appelez-nous	-
1	W10131642		Use & Care Guide		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8557930		Top		Appelez-nous	-
17	WP8566073		Push-to-start   (Replaces: 8566073)				$ 58.00
20	WP3399639		Switch, Rotary   (Replaces: 3399639)				$ 131.16
21	WPW10185981		Timer (60 Hz.)   (Replaces: W10185981)				$ 346.09
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
25	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
26	W10186122		Harness, Wiring		Appelez-nous	-
27	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
28	8566061		Timer Knob Assembly				$ 26.93
29	8565944		Knob, Control				$ 25.10
30	717252		Receptacle, 2 Way		Appelez-nous	-
31	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
32	8544895		Bracket, Control		Appelez-nous	-
33	W10167875		Panel, Control		Appelez-nous	-
34	3936144		Connector				$ 21.22
35	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
36	3391249		Cable Tie, Push Mount		Appelez-nous	-
37	3401144		Connector, (pts Relay)				$ 12.81
38	3347243		Connector 6-circuit		Appelez-nous	-
