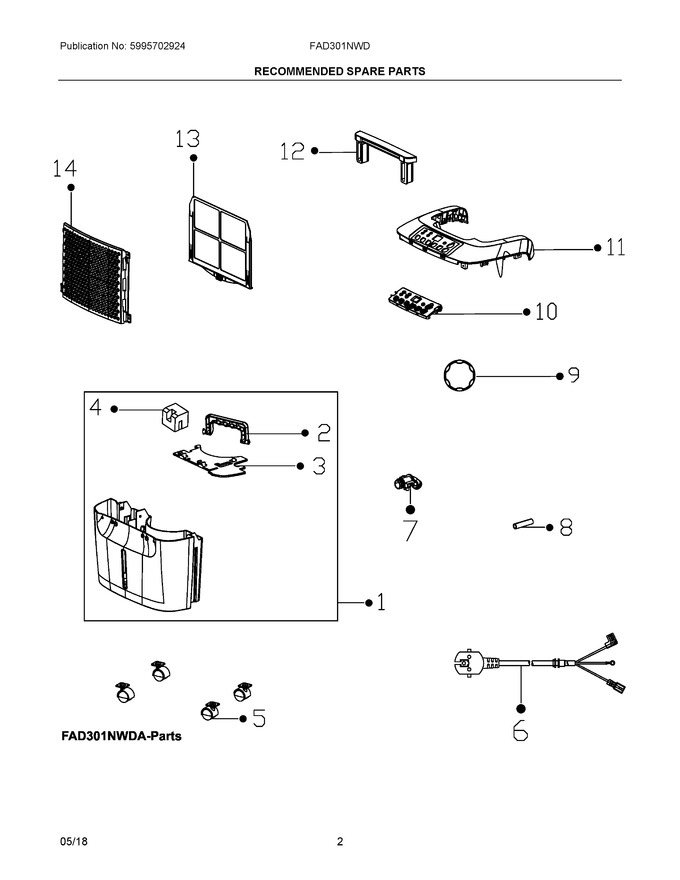

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304516982 | Bucket, Assembly |
|
- | |||||
| 2 | 5304512484 | Handle, Bucket |
|
- | |||||
| 3 | 5304516983 | Cover, Bucket |
|
- | |||||
| 4 | 5304512482 | Pad, Foam, Floater |
|
- | |||||
| 5 | 5304512486 | Caster, (4) |
|
$ 20.24 | |||||
| 6 | 5304516984 | Power Cord, Electric Svce |
|
- | |||||
| 7 | 5304516971 | Drain Kit |
|
- | |||||
| 8 | 5304512488 | Switch, Inching |
|
- | |||||
| 9 | 5304516985 | Knob |
|
- | |||||
| 10 | 5304516986 | Board, Display |
|
- | |||||
| 11 | 5304516987 | Cover, Assembly, Top |
|
- | |||||
| 12 | 5304516988 | Handle, Assembly |
|
- | |||||
| 13 | 5304516989 | Filter |
|
- | |||||
| 14 | 5304516990 | Front Panel, Assembly |
|
- |
