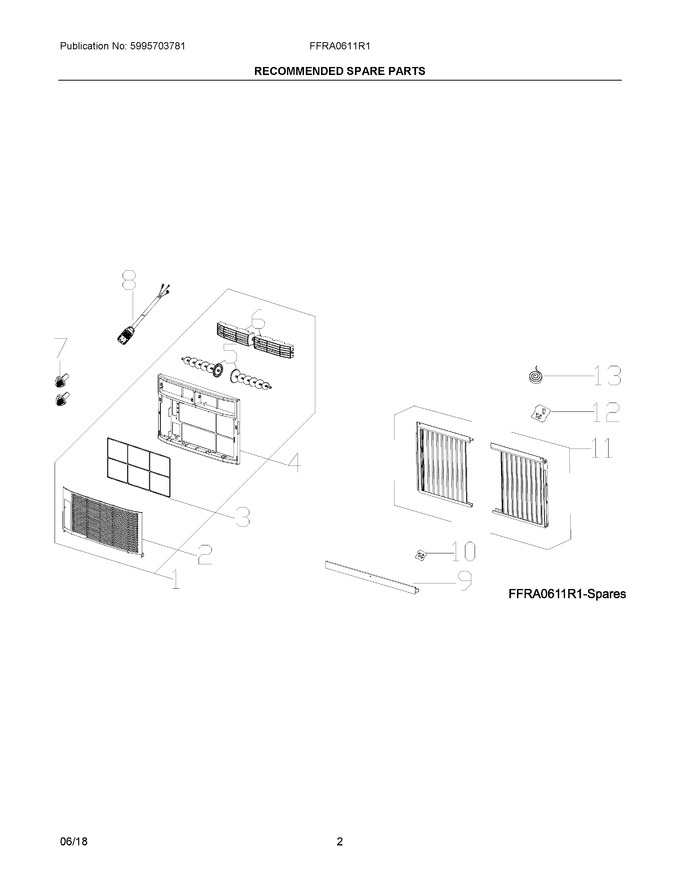

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304516994 | Front Assembly, Complete Panel |
|
- | |||||
| 2 | 5304516995 | Panel, Front Grill, Tilt-out |
|
- | |||||
| 3 | 5304516996 | Filter, Air, Plastic Frame |
|
- | |||||
| 4 | 5304516997 | Frame, Front Assembly |
|
- | |||||
| 5 | 5304516998 | Louver, Vertical |
|
- | |||||
| 6 | 5304516999 | Louver, Horizontal |
|
- | |||||
| 7 | 5304517000 | Knob Assembly, Control, , W/spring |
|
- | |||||
| 8 | 5304502068 | Power Cord, Electric, 115 V, Lcdi |
|
- | |||||
| 9 | 5304517001 | Rail, Shutter Track, Top |
|
- | |||||
| 10 | 5304517002 | Screw Kit, Top Rail Mount |
|
- | |||||
| 11 | 5304517003 | Window Filler Kit, Slider Panels |
|
- | |||||
| 12 | 5304500938 | Hardware, Mounting, Screws/locks |
|
- | |||||
| 13 | 5304502064 | Seal Kit, Foam, Sash Filler |
|
$ 32.54 |
