01 - Cover Sheet

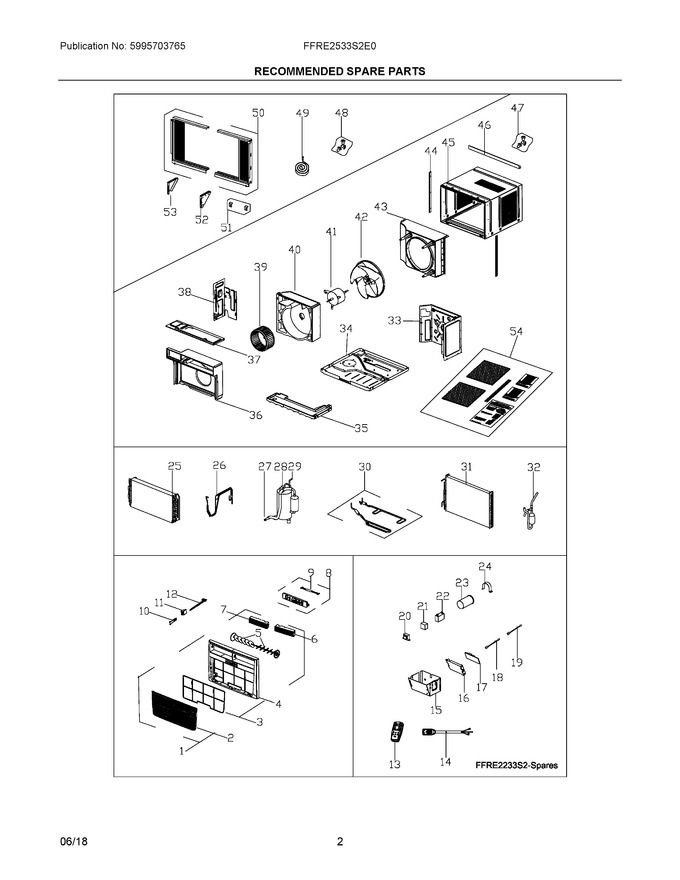

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304477142		Front Assembly, Complete Panel				$ 78.07
2	5304477143		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304535829		Filter, Air, Plastic Frame   (Replaces: 5304477144)				$ 8.69
4	5304477145		Panel, Frame, Front		Appelez-nous	-
5	5304477146		Louver, Vertical		Appelez-nous	-
6	5304477147		Louver, Horizontal, Right		Appelez-nous	-
7	5304477148		Louver, Horizontal, Left		Appelez-nous	-
8	5304496250		Pc Board, Display/input		Appelez-nous	-
9	5304496251		Wire, Connector, Pc Boards		Appelez-nous	-
10	5304495010		Handle, Vent Control		Appelez-nous	-
11	5304529409		Link, Lever/vent Door, Detente   (Replaces: 5304476359)		Appelez-nous	-
12	5304477149		Door, Vent Control, With Lever		Appelez-nous	-
13	5304501878		Remote Control, Transmitter   (Replaces: 5304476851)				$ 102.58
14	5304512383		Power Cord, Electric, Lcdi		Appelez-nous	-
15	5304512384		Control Box		Appelez-nous	-
16	5304512372		Holder, Mounting Plate, Control		Appelez-nous	-
17	5304512373		Pc Board, Main, Control/power		Appelez-nous	-
18	5304512374		Thermistor, Temp Sensor, Indoor		Appelez-nous	-
19	5304512375		Sensor, Temperature, Evaporator				$ 33.16
20	5304512376		Transformer		Appelez-nous	-
21	5304512377		Ionizer, Anion Generator		Appelez-nous	-
22	5304512378		Capacitor, Fan Motor		Appelez-nous	-
23	5304512385		Capacitor, Compressor		Appelez-nous	-
24	5304512380		Strap, Capacitor Clamp		Appelez-nous	-
25	5304512386		Evaporator		Appelez-nous	-
26	5304512387		Tube, Capillary		Appelez-nous	-
27	5304495033		Tube, Suction		Appelez-nous	-
28	5304504182		Compressor, With Overload		Appelez-nous	-
29	5304495034		Tube, Discharge		Appelez-nous	-
30	5304500879		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
31	5304500880		Condenser		Appelez-nous	-
32	5304476257		Filter-drier		Appelez-nous	-
33	5304495036		Bulkhead, Partition, Front/right		Appelez-nous	-
34	5304476258		Base, Unit Chassis		Appelez-nous	-
35	5304472343		Tray, Drip Pan, Foam		Appelez-nous	-
36	5304495037		Scroll, Blower Housing, Front		Appelez-nous	-
37	5304495038		Cover, Blower Scroll, Front		Appelez-nous	-
38	5304504912		Bulkhead, Partition, Front/left		Appelez-nous	-
39	5304521140		Blower Wheel, Centrifugal Fan   (Replaces: 5304472407)		Appelez-nous	-
40	5304476262		Scroll, Blower Housing, Rear		Appelez-nous	-
41	5304521142		Motor, Fan   (Replaces: 5304482882)		Appelez-nous	-
42	5304538708		Fan Blade, Axial Flow   (Replaces: 5304472356)				$ 50.16
43	5304495040		Shroud, Condenser/fan		Appelez-nous	-
44	5304504806		Retainer, Shutter, Cabinet Sides		Appelez-nous	-
45	5304485992		Cabinet, Wrapper/sleeve		Appelez-nous	-
46	5304476265		Rail, Shutter Track, Top Channel		Appelez-nous	-
47	5304472364		Screw Kit, Top Rail Mount		Appelez-nous	-
48	5304476266		Hardware, Mounting, Screws/locks		Appelez-nous	-
49	5304472366		Seal Kit, Foam, Sash & Rails		Appelez-nous	-
50	5304504807		Window Filler Kit, Slider Panel		Appelez-nous	-
51	5304472360		Bracket, Sill Angle		Appelez-nous	-
52	5304482508		Bracket, Window Mounting, Right		Appelez-nous	-
53	5304482509		Bracket, Window Mounting, Left		Appelez-nous	-
NI	5304504911		Panel, Insulation, R1		Appelez-nous	-
