View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

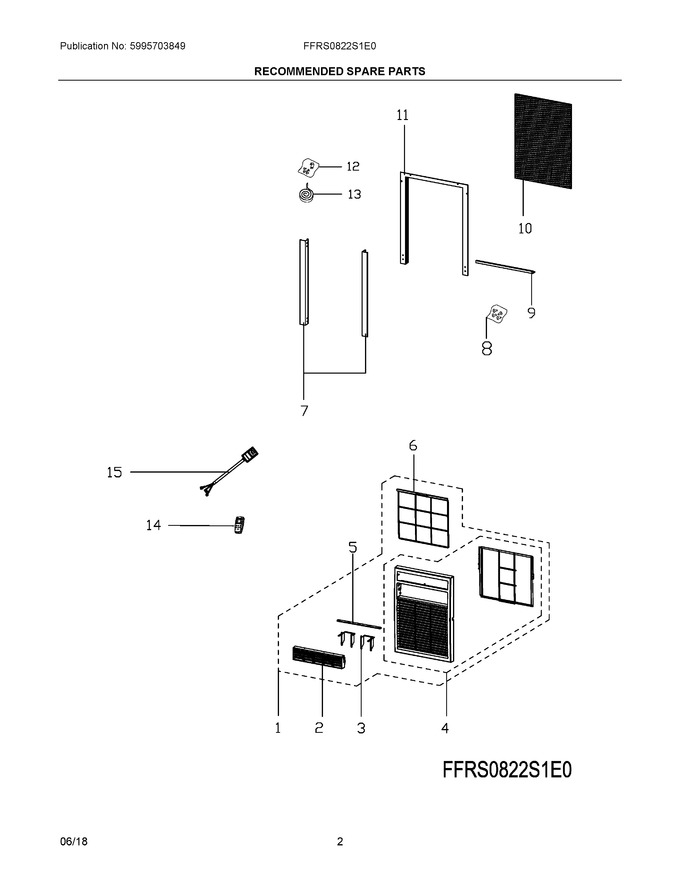

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304517014 | Front-rac, Panel Assy |
|
- | |||||
| 2 | 5304517015 | Louvres, Air Outlet Fram |
|
- | |||||
| 3 | 5304517016 | Louvres, Vertical Louvre |
|
- | |||||
| 4 | 4056071246 | Panel (Replaces: 5304517017) |
|
- | |||||
| 5 | 5304517018 | Rail, Connecting Rod |
|
- | |||||
| 6 | 5304517019 | Filter-air |
|
- | |||||
| 7 | 5304517020 | Frame, Side Shutter F. |
|
- | |||||
| 8 | 5304521206 | Screw Kit, Top Rail Mount (Replaces: 5304471644) |
|
- | |||||
| 9 | 5304517021 | Rail, Top Rail |
|
- | |||||
| 10 | 5304517022 | Screen, Rear Net |
|
- | |||||
| 11 | 4056030838 | Frame, Installation F. (Replaces: 5304517023) |
|
- | |||||
| 12 | 5304471645 | Hardware Kit, Installation |
|
- | |||||
| 13 | 5304517024 | Seal, Foam Seals |
|
- | |||||
| 14 | 5304501878 | Remote Control, Transmitter |
|
$ 102.58 | |||||
| 15 | 5304512418 | Power Cord, Electric, Lcdi |
|
- |
