SELECT A DIAGRAM

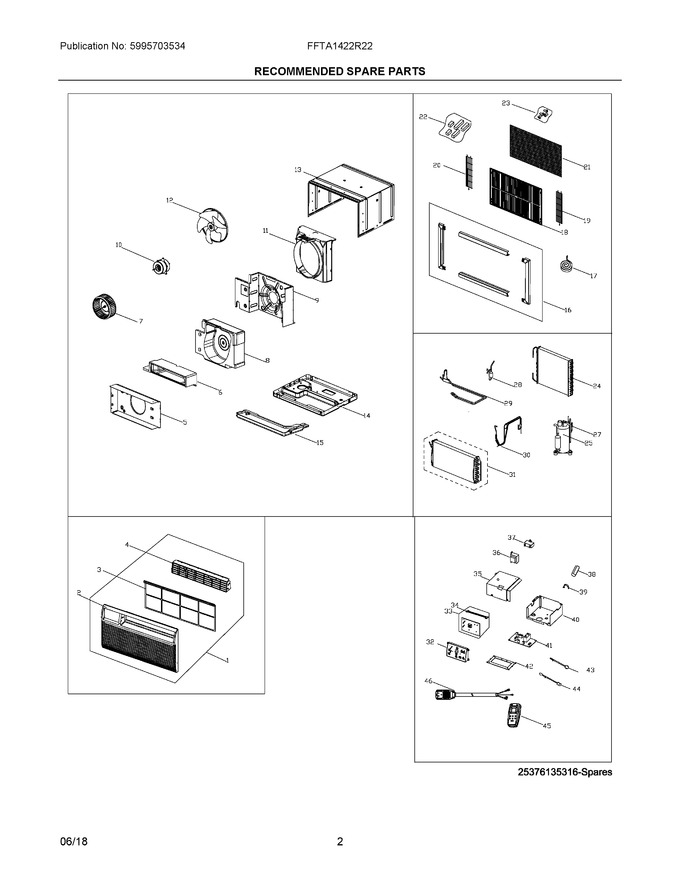

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304476434		Front Assembly, Complete Panel		Appelez-nous	-
2	5304476435		Panel, Front Grille		Appelez-nous	-
3	5304476436		Filter, Air, Plastic Frame		Appelez-nous	-
4	5304476437		Louver, Horizontal		Appelez-nous	-
5	5304501083		Box, Installation, Heater		Appelez-nous	-
6	5304501084		Scroll, Blower Housing, Front		Appelez-nous	-
7	5304471193		Blower Wheel, Centrifugal Fan				$ 85.05
8	5304501085		Scroll, Blower Housing, Rear		Appelez-nous	-
9	5304501086		Bulkhead, Partition, Air System		Appelez-nous	-
10	5304504186		Motor, Fan		Appelez-nous	-
11	5304501088		Shroud, Fan Housing, Condenser		Appelez-nous	-
12	5304470971		Fan Blade				$ 82.41
13	5304501087		Cabinet, Wrapper/sleeve		Appelez-nous	-
14	5304501089		Base, Unit Chassis		Appelez-nous	-
15	5304501090		Tray, Drip Pan, Foam		Appelez-nous	-
16	5304476442		Trim, Frame, Top/bottom/side		Appelez-nous	-
17	5304470974		Seal, Stuffer, Foam, Wall/sleeve		Appelez-nous	-
18	5304482549		Grille, Sleeve, Aluminum, Rear		Appelez-nous	-
19	5304501091		Grille, Air Inlet, Right Rear		Appelez-nous	-
20	5304501092		Grille, Air Inlet, Left Rear		Appelez-nous	-
21	5304470975		Grille, Plastic, Rear		Appelez-nous	-
22	5304470979		Seal & Spacer Kit		Appelez-nous	-
23	5304470978		Fastener Kit, Rear Grille, Screws		Appelez-nous	-
24	5304504865		Condenser		Appelez-nous	-
25	5304512462		Compressor, W/supreesor		Appelez-nous	-
27	5304501977		Tube, Discharge		Appelez-nous	-
28	5304476367		Filter-drier				$ 45.55
29	5304504872		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
30	5304501978		Tube, Capillary		Appelez-nous	-
31	5304505856		Evaporator, +capillary Tube		Appelez-nous	-
32	5304492059		Control Panel, With Overlay		Appelez-nous	-
33	5304537405		Pc Board, Display/input   (Replaces: 5304471197)				$ 47.54
34	5304480400		Wire, Connector, Pc Boards		Appelez-nous	-
35	5304501097		Cover, Control Box		Appelez-nous	-
36	5304512376		Transformer		Appelez-nous	-
37	5304512463		Capacitor, Fan Motor Cap		Appelez-nous	-
38	5304512431		Capacitor, Compressor, Fan Cap		Appelez-nous	-
39	5304512422		Clamp, Capacitor		Appelez-nous	-
40	5304517040		Box		Appelez-nous	-
41	5304512416		Pc Board, Control, Main		Appelez-nous	-
42	5304512372		Holder, Mounting Plate, Control		Appelez-nous	-
43	5304505896		Sensor, Evap Temp, Thermistor		Appelez-nous	-
44	5304512374		Thermistor, Temp Sensor, Indoor		Appelez-nous	-
45	5304476618		Remote Control, Transmitter		Appelez-nous	-
46	5304516354		Power Cord, Electric Servic   (Replaces: 5304512370)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
