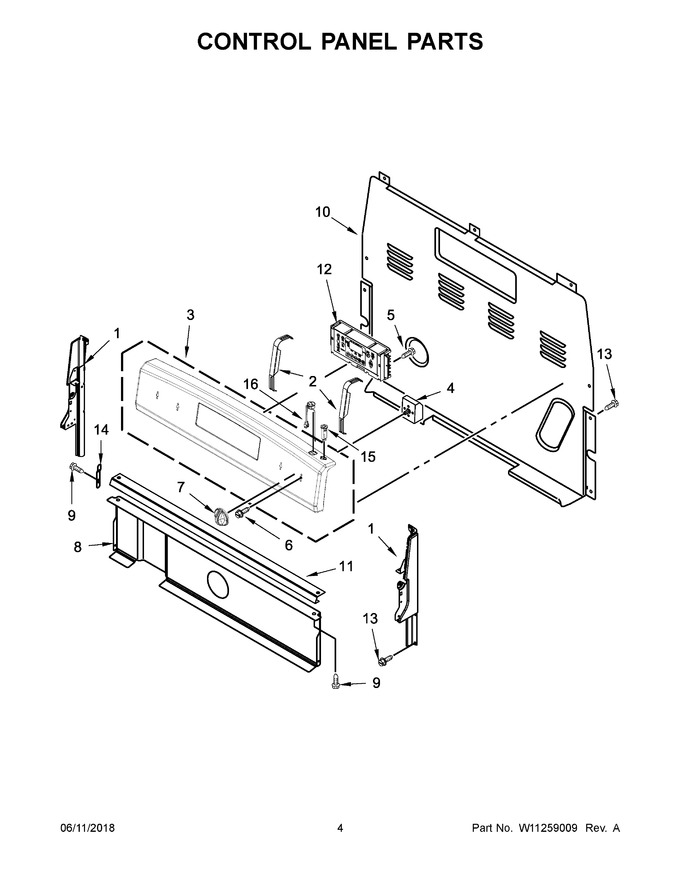

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
3	W11250168		Panel, Control (white)   (Replaces: W11157115)				$ 476.28
4	5500-287		Switch, Infinite (green) (right Front And Left Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
6	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
7	W11188750		Knob, Infinite (white)   (Replaces: W10844800)				$ 21.54
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W10904901		Control, Electronic (white)   (Replaces: W10837800)				$ 502.99
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	3196200		Clip, Spring				$ 10.45
15	WP9757601		Breaker, Circuit (white)   (Replaces: 9757601)			Immediately	$ 65.55
16	W10849725		Receptacle, Fused (white)   (Replaces: W10749727)			Immediately	$ 80.79
1A	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
4A	5500-287		Switch, Infinite (left Front And Right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
