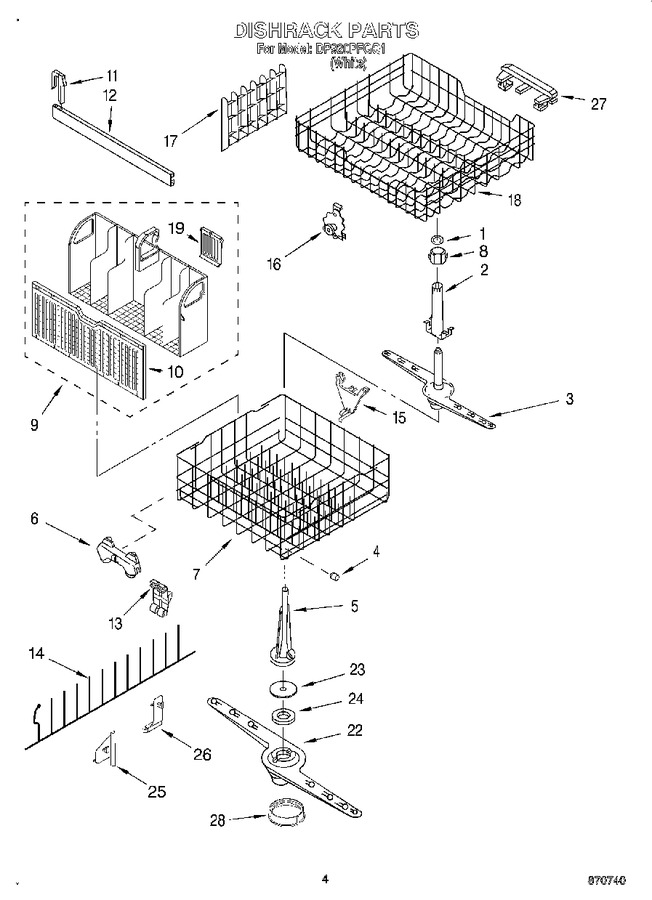

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303722		Clip				$ 5.75
2	3368290		Support, Arm (also Order Items 1 & 8)		Appelez-nous	-
3	3377274		Spray Arm, Upper (also Order Items 1 & 8)		Appelez-nous	-
4	WP3385142		Bumper (2)   (Replaces: 3368006)				$ 94.82
5	300848		Tower, Pressure		Appelez-nous	-
6	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3376961)				$ 98.69
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 8051113)			Immediately	$ 188.14
8	3374702		Support, Lock Spray Arm				$ 6.29
9	3380872		Silverware Basket Assembly		Appelez-nous	-
10	3380874		Door, Silverware Basket		Appelez-nous	-
11	3379941		Stop, Track (4)				$ 42.08
12	WP3385089		Track   (Replaces: 9742998)			Immediately	$ 80.00
13	3368629		Retainer, Flexrow				$ 5.84
14	W10728160		Flexrow, Folding   (Replaces: 8051250)			Immediately	$ 49.07
15	3379955		Pivot, Folddown				$ 25.40
16	WPW10204131		Adjuster Assembly   (Replaces: 3380860)			Immediately	$ 9.16
17	WP8268828		Cupshelf, Small   (Replaces: 3371264)				$ 135.89
18	W11169039		Dishrack, Upper   (Replaces: 3369908)			Immediately	$ 203.14
19	3380876		Lid, Silverware Basket		Appelez-nous	-
22	WP8268874		Sprayarm, Lower   (Replaces: 3379363)				$ 127.32
23	3367910		Cap, Nozzle				$ 39.70
24	719576		Bearing, Nozzle				$ 7.48
25	8051187		Clip, Silverware Basket (left)		Appelez-nous	-
26	8051188		Clip, Silverware Basket (right)		Appelez-nous	-
27	WP3357331		Clip, Cupshelf   (Replaces: 3369913)				$ 8.19
28	WP3376846		Seal, Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
