SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

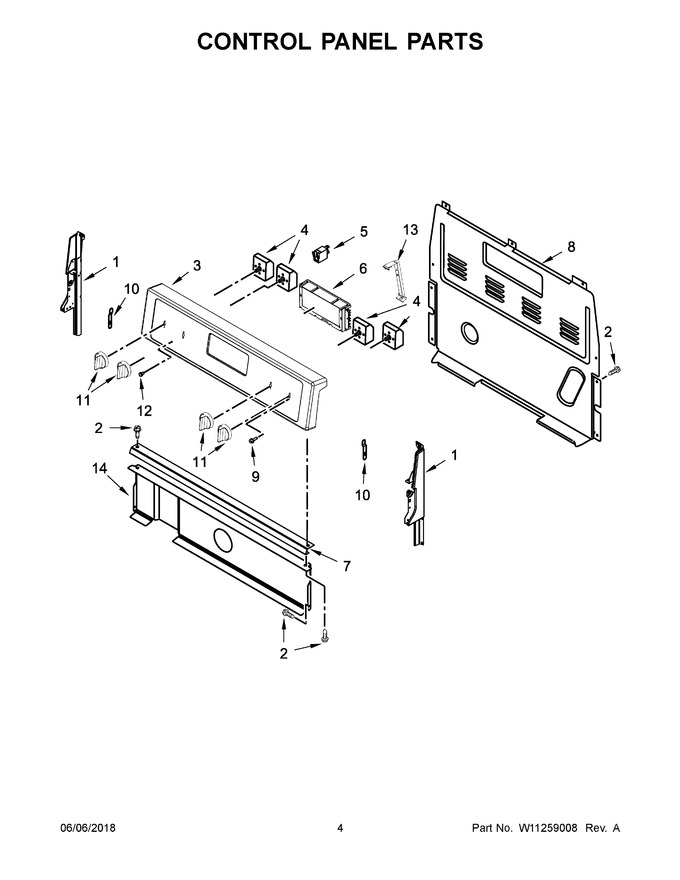

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	W11135505		Panel, Console (black)		Appelez-nous	-
4	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 69.51
5	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 86.31
6	W11122531		Control, Electric (lcc 190) (black)   (Replaces: W10887924)				$ 472.30
7	W10525121		Bracket, Console Mounting				$ 98.85
8	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	3196200		Clip, Spring				$ 10.45
11	W10836470		Assembly, Control Knob (black)   (Replaces: W10676213)			Immediately	$ 38.09
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
13	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
14	W10134247		Shield, Heat			Immediately	$ 358.82
11A	W10853029		Assembly, Control Knob (white)   (Replaces: W10676214)			Immediately	$ 38.27
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
3A	W11135506		Panel, Console (white)		Appelez-nous	-
4A	WP3149400		Switch, Infinite (left Front And Right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
6A	W11122533		Control, Electric (lcc 190) (white)   (Replaces: W10887923)				$ 502.99

    View Diagram in Separate Window       Print Part List
