View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts

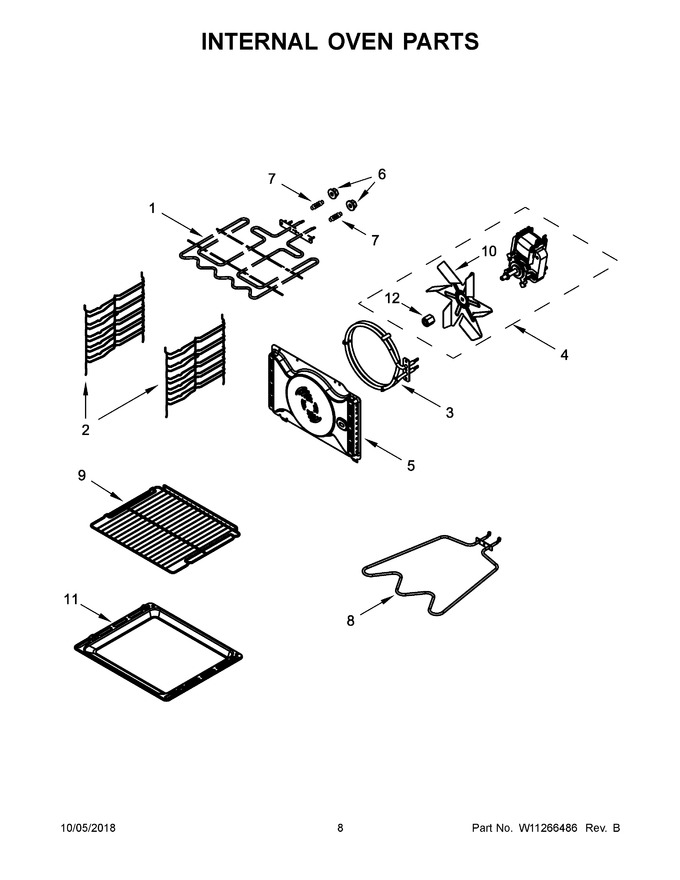

05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10568824 | Element, Upper Grill (2450 Watts) |
|
$ 357.29 | |||||
| 2 | W11236920 | Grid, Oven Rack (Replaces: W10762741) |
|
$ 88.57 | |||||
| 3 | W10519049 | Element, Convection 2000 Watts |
|
Immediately | $ 40.71 | ||||
| 4 | W11237275 | Motor, Fan Convection (Replaces: W10781691) |
|
$ 354.11 | |||||
| 5 | W11236917 | Baffle, Convection Fan (Replaces: W10696902) |
|
$ 226.85 | |||||
| 6 | W11268045 | Nut, Upper Element M4 (Replaces: W11266647) |
|
$ 13.66 | |||||
| 7 | W10519809 | Spring, Upper Element |
|
$ 3.62 | |||||
| 8 | W11237289 | Element, Lower 1150 Watts (Replaces: W10551720) |
|
Immediately | $ 172.61 | ||||
| 9 | W11236918 | Rack, Oven (Replaces: W10635612) |
|
Immediately | $ 43.95 | ||||
| 10 | W11237278 | Blade, Fan (Replaces: W10781712) |
|
- | |||||
| 11 | W11267739 | Pan, Deep (Replaces: W10674817) |
|
$ 171.74 | |||||
| 12 | W11237447 | Nut (Replaces: W10781713) |
|
$ 14.72 |
