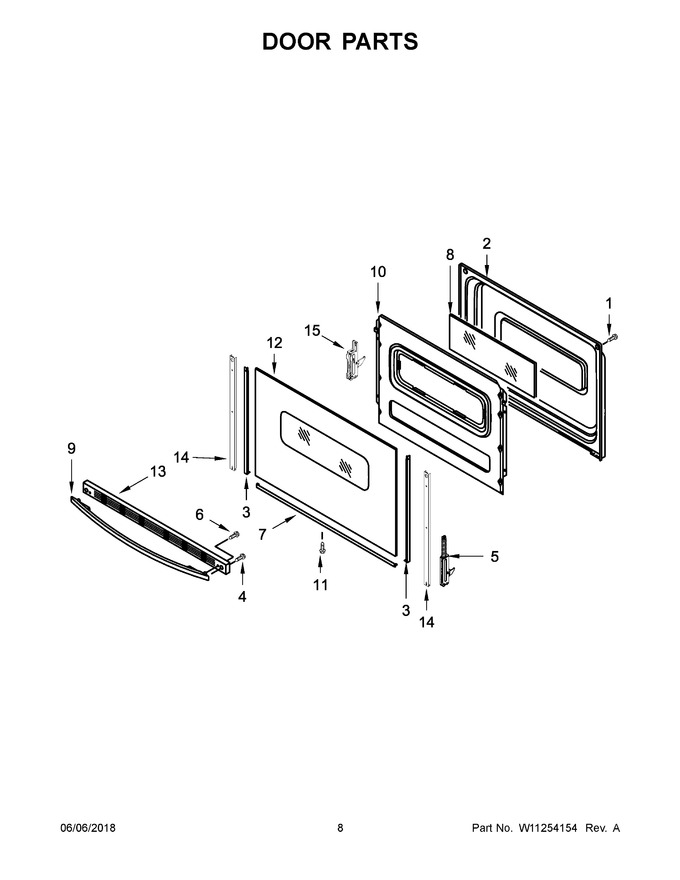

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
3	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
5	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 52.34
6	WPW10465148		Screw   (Replaces: W10465148)			Immediately	$ 8.79
7	WP8523177		Trim, Lower Door (black)   (Replaces: 8523177)			Immediately	$ 165.86
8	W11399628		Glass, Inner   (Replaces: W10620754)				$ 171.68
9	W10300490		Handle, Oven Door (black)			Immediately	$ 156.75
10	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 188.29
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	WPW10409946		Glass, Window (black)   (Replaces: W10409946)				$ 319.25
13	WPW10310922		Trim, Oven Door Vent (black)   (Replaces: W10310922)			Immediately	$ 175.37
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 27.68
15	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
12A	WPW10409945		Glass, Window (white)   (Replaces: W10409945)			Immediately	$ 248.79
13A	W10817433		Trim, Oven Door Vent (white)   (Replaces: W10310920)			Immediately	$ 103.27
3A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 72.96
3B	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
3C	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 84.23
7A	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 61.37
9A	W10300489		Handle, Oven Door (white)			Immediately	$ 244.88

    View Diagram in Separate Window       Print Part List
