SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts

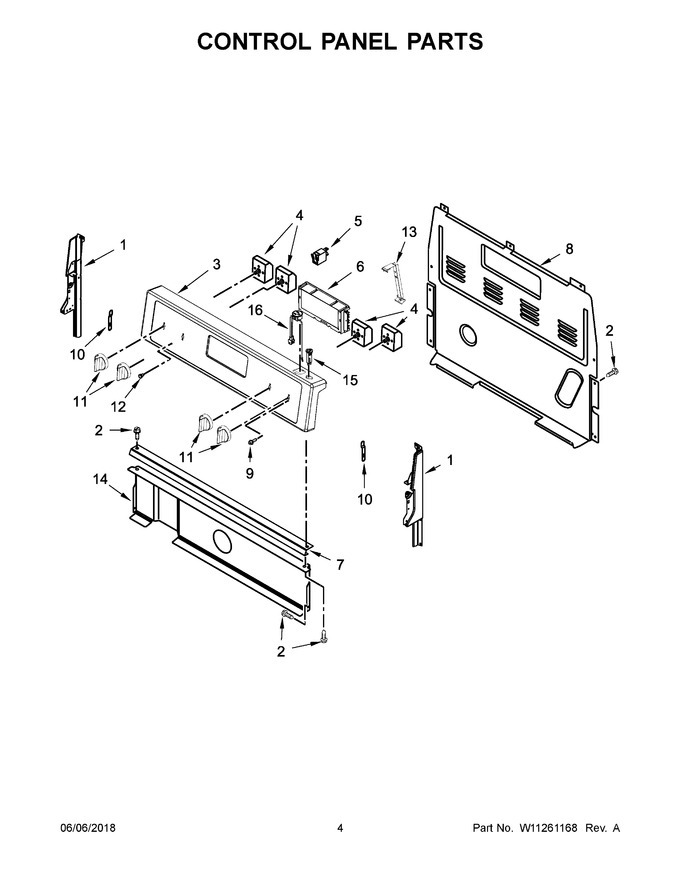

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	W11231630		Panel, Console (white)   (Replaces: W11135519)				$ 477.58
4	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 69.51
5	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 86.31
6	W11122533		Control, Electric (lcc 190) (white)   (Replaces: W10887923)				$ 502.99
7	W10525121		Bracket, Console Mounting				$ 98.85
8	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	3196200		Clip, Spring				$ 10.45
11	W10853029		Assembly, Control Knob (white)   (Replaces: W10676214)			Immediately	$ 38.27
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
13	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
14	W10134247		Shield, Heat			Immediately	$ 358.82
15	WP9757601		Circuit Breaker (white)   (Replaces: 9757601)			Immediately	$ 65.55
16	W10849725		Receptacle (white)   (Replaces: W10749727)			Immediately	$ 80.79
1A	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
4A	WP3149400		Switch, Infinite (left Front And Right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
