SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Dishrack


05 - Pump And Motor


06 - Cabinet


07 - Miscellaneous, Lit/optional

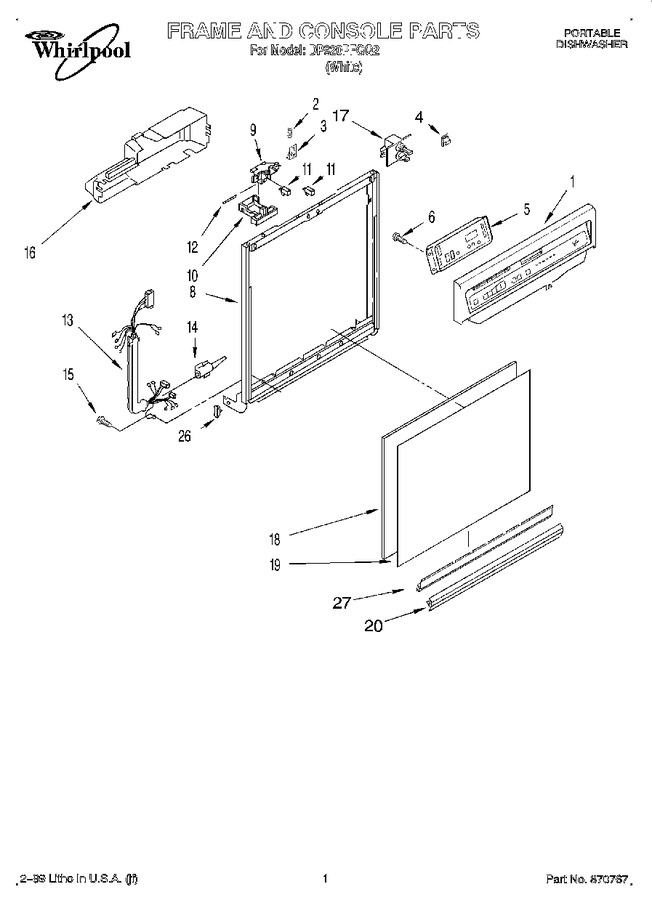

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8051703		Console (includes Item 2)		Appelez-nous	-
2	675782		Spring, Door Catch   (Replaces: 3379358)				$ 9.90
3	675782		Catch, Door   (Replaces: 3379357)				$ 9.90
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
5	9744031		Control, Electronic		Appelez-nous	-
6	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	3374712		Door Frame (includes Item 27)				$ 141.54
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8271434		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw   (Replaces: 3400803)				$ 7.08
16	8051304		Cover, Timer		Appelez-nous	-
17	3374501		Motor, Dual				$ 45.99
18	3374777		Door, Sound Absorber		Appelez-nous	-
19	WP3369769		Panel, Front (white/black)   (Replaces: 3369769)				$ 59.42
20	3374011		Retainer, Panel				$ 59.30
26	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
27	WP3374716		Channel, Retainer (also Order Item 20)   (Replaces: 3374716)				$ 100.22

    View Diagram in Separate Window       Print Part List
