Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB28K10640 Lp Conversion Kit Appelez-nous -
49 WB28X27152 Tube Broil Supply Asm Appelez-nous -
54 WB28K10665 Tube Cooktop Supply Asm Appelez-nous -
58 WB28X27155 Tube Bake Supply Asm Appelez-nous -
61 WB02K10203 Bushing Wire Appelez-nous -
62 WB28K10671 Tube Lockout Valve Asm Appelez-nous -
63 WB28X27156 Tube Valve Supply Asm Appelez-nous -
195 WS01L01958 Relay Board Asm   (Replaces: WB19K10063) In-Stock Immediately $ 1,112.07

203 WB04K10032 Gasket Frame Front Appelez-nous -
211 WB1K5 Bottom Oven Screw Appelez-nous -
212 WS01A01047 Speednut   (Replaces: WB1K2) Special Order $ 3.97

213 WB02K10195 Gasket Frame Front Appelez-nous -
217 WB63K10263 Panel Side Appelez-nous -
218 WB63K10264 Panel Side Appelez-nous -
225 WB07K10452 Trim Vent Asm Appelez-nous -
229 WB49X24032 Kit Leg Appelez-nous -
230 WB02K10237 Bracket Anti Tip Appelez-nous -
231 WB02K10224 Brace Anti Tip Appelez-nous -
237 WB28K10667 Pipe Supply Asm Appelez-nous -
244 WB26K10012 Blower Tangential 45mm Special Order $ 175.90

272 WG02L01603 Side Panel Support   (Replaces: WB02T10034) Special Order $ 4.20

277 WB10T10083 Receiver Hinge Appelez-nous -
281 WB07X31798 White Slate Access Panel Appelez-nous -
292 WB07X30026 Panel Access Back Appelez-nous -
329 WB02K10228 Adapter Flare Fitting Appelez-nous -
332 WB02K10301 Nipple Appelez-nous -
333 WS01F02320 Regulator   (Replaces: WB21K10137) Special Order $ 141.48

578 WG02F00227 Capacitor Motor   (Replaces: WB27T10662) Special Order $ 28.59

707 WB02K10267 Clip Wire Appelez-nous -
784 WB18K10070 Line Cord Appelez-nous -
800 WB01K10042 Scr 8-18 Ab Ihw 3/8 Sn Appelez-nous -
802 WB21K10154 Valve Lockout Motorized Appelez-nous -
875 WB02T10194 Bracket Capacitor Appelez-nous -
903 WB21K10155 Valve Shut Off Appelez-nous -
905 WB28K10662 Inlet Block Appelez-nous -
1100 WR01X10590 Scr 10-16 Ab Pnt20 1/2 S Appelez-nous -
1150 WS01F01308 Safety Valve Asm   (Replaces: WB21K10153) In-Stock Immediately $ 121.54

1400 WB27K10367 Reed Switch Pcb Appelez-nous -
1600 WB02K10392 Rod Extension Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

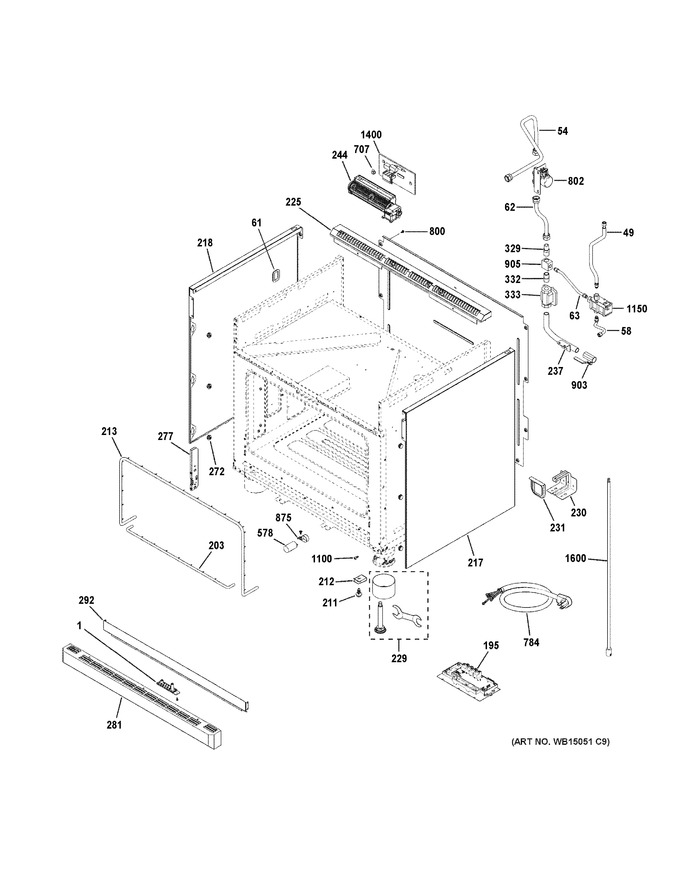

Diagram for CGY366P4M1W2
