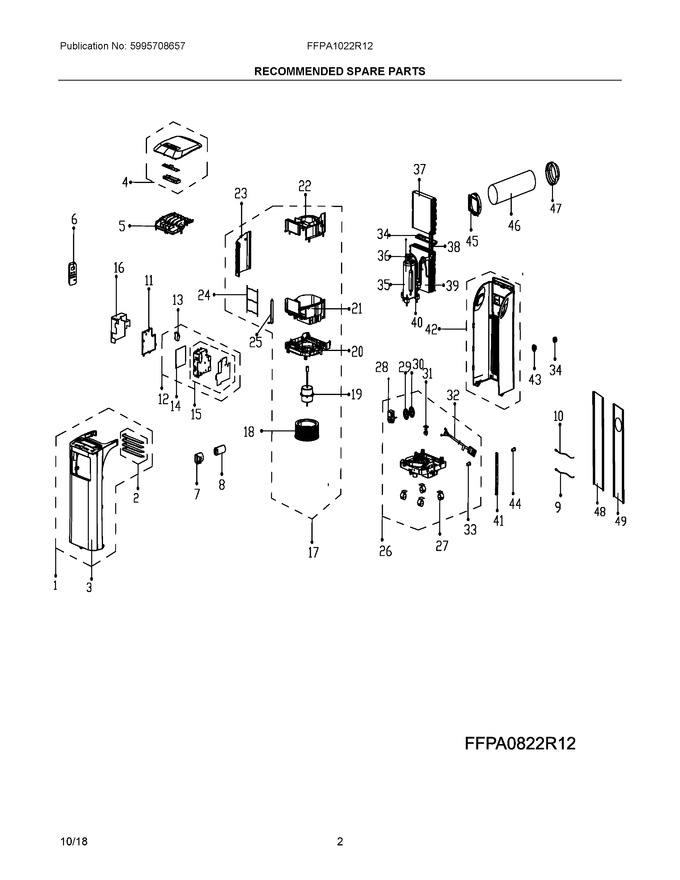

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304502003		Panel Assembly, Front, W/louvers		Appelez-nous	-
2	5304502004		Louver, Horizontal		Appelez-nous	-
3	5304502005		Panel, Front		Appelez-nous	-
4	5304517058		Top, Top Panel Assy		Appelez-nous	-
5	5304502012		Top Clapboard, Display Box		Appelez-nous	-
6	5304517059		Control-electrical, Remote Cntrl		Appelez-nous	-
7	5304517060		Cover, Cover, Capacito		Appelez-nous	-
8	5304502015		Capacitor, Compressor		Appelez-nous	-
9	5304517061		Sensor, Room Temp. Sen		Appelez-nous	-
10	5304517062		Sensor, Pipe, Temp Sns		Appelez-nous	-
11	5304517063		Shield		Appelez-nous	-
12	5304517064		Box		Appelez-nous	-
13	5304502021		Capacitor, Fan Motor		Appelez-nous	-
14	5304517065		Control-electrical		Appelez-nous	-
15	5304517067		Box, W/shield		Appelez-nous	-
17	5304517068		Blower, Air, Exhaust		Appelez-nous	-
18	5304502026		Blower, Exhaust Fan, Bottom		Appelez-nous	-
19	5304502027		Motor, Blower Fan		Appelez-nous	-
20	5304502028		Cover, Exhaust Scroll		Appelez-nous	-
21	5304502029		Scroll, Air Inlet		Appelez-nous	-
22	5304502031		Cover, Scroll, Air Inlet		Appelez-nous	-
23	5304502032		Panel, Right Side		Appelez-nous	-
24	5304502033		Grille, Air Outlet		Appelez-nous	-
25	5304502034		Louver, Vertical		Appelez-nous	-
26	5304517069		Base, Base Pan Assy		Appelez-nous	-
27	5304502037		Caster, Roller, (4)				$ 23.39
28	5304502038		Motor, Slinger, Shaded Pole		Appelez-nous	-
29	5304502039		Slinger, Water Wheel, Condensate		Appelez-nous	-
30	5304517070		Wheel, Water Wheel Ii		Appelez-nous	-
31	5304502041		Switch, Water Level		Appelez-nous	-
32	5304536807		Power Cord, Electric, 115 V, Lcdi   (Replaces: 5304502042)				$ 140.95
33	5304502043		Stopper, Drain, Chassis/base				$ 14.89
34	5304502044		Cover, Drain Connector				$ 14.49
35	5304502045		Compressor		Appelez-nous	-
36	5304517076		Tube		Appelez-nous	-
37	5304517077		Evaporator		Appelez-nous	-
38	5304502049		Tube, Capillary		Appelez-nous	-
39	5304517073		Condenser-air Cool, Rec.		Appelez-nous	-
40	5304517078		Tube, Comp. Suct. Pip		Appelez-nous	-
41	5304517052		Support Bar				$ 161.94
42	4056022892		Rear Panel Assy   (Replaces: 5304517053)				$ 6.62
43	5304502055		Connector, Drain Hose, W/seal		Appelez-nous	-
44	5304502056		Plug, Drain Spigot, Rear		Appelez-nous	-
45	5304502053		Exhaust Adapter A, Cabinet, Back		Appelez-nous	-
46	5304502052		Exhaust Hose, Condenser Mtg.				$ 15.90
47	4056015276		Adapter, Wndw Ex Adp B   (Replaces: 5304517075)				$ 7.61
48	5304517055		Window Sliding Kit 1				$ 120.38
49	5304502062		Window Slider-2, No Hole				$ 104.90
