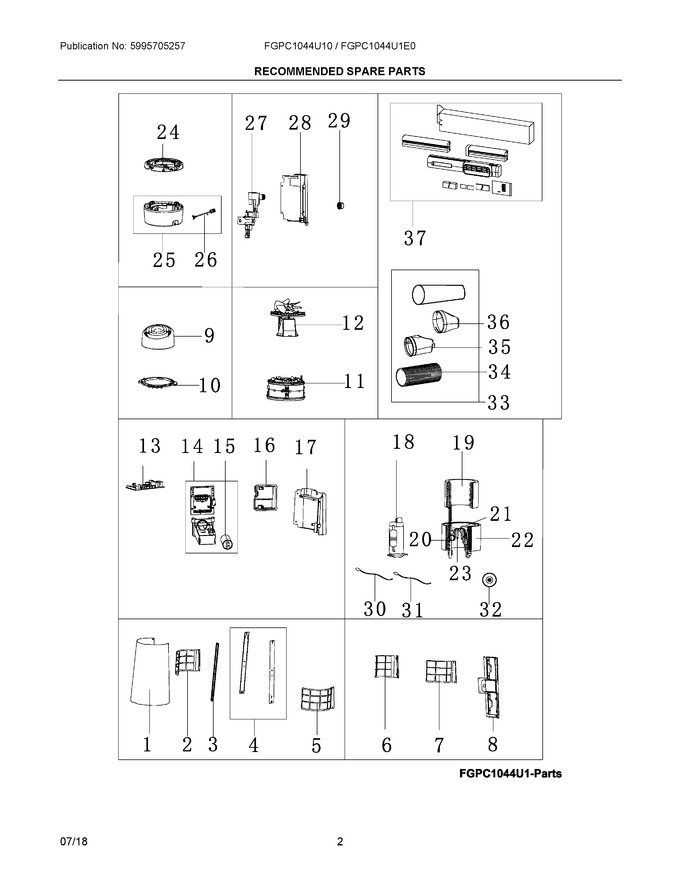

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509228		Panel, Front Grille		Appelez-nous	-
2	5304509265		Filter/frame, Outdoor Air, Left		Appelez-nous	-
3	5304509268		Bar, Support, Front		Appelez-nous	-
4	5304509269		Bar, Support, Side		Appelez-nous	-
5	5304509270		Filter/frame, Outdoor Air, Right		Appelez-nous	-
6	5304509271		Filter/frame, Inner Air, Left		Appelez-nous	-
7	5304509272		Filter/frame, Inner Air, Right		Appelez-nous	-
8	5304509273		Panel Assembly, Back		Appelez-nous	-
9	5304509274		Discharge Assembly, Cool Air		Appelez-nous	-
10	5304509275		Handle, Unit Carry		Appelez-nous	-
11	5304509276		Scroll Assembly, Air Outlet		Appelez-nous	-
12	5304517079		Air Exhaust		Appelez-nous	-
13	5304517081		Control-electrical, Pcb		Appelez-nous	-
14	5304509282		Control Box, With Capacitor		Appelez-nous	-
15	5304502015		Capacitor, Compressor		Appelez-nous	-
16	5304509284		Cover, Control Box		Appelez-nous	-
17	5304509285		Shield, Heat, Metal, Control Box		Appelez-nous	-
18	5304504168		Compressor, With Overload		Appelez-nous	-
19	5304509287		Evaporator		Appelez-nous	-
20	5304509288		Tube, Capillary		Appelez-nous	-
21	5304517082		Tube, Comp Exh Pipe		Appelez-nous	-
22	5304509290		Condenser		Appelez-nous	-
23	5304517083		Tube, Comp Rtn Pipe		Appelez-nous	-
24	5304509292		Base, Unit Chassis		Appelez-nous	-
25	5304509293		Tank Assembly, Water, W/power Cord		Appelez-nous	-
26	5304509294		Power Cord, Electric, 115 V, Lcdi		Appelez-nous	-
27	5304509295		Tube, Drain		Appelez-nous	-
28	5304509296		Panel Assembly, Rear		Appelez-nous	-
29	5304502043		Stopper, Drain, Chassis/base				$ 14.89
30	5304509297		Sensor, Temperature, Evaporator		Appelez-nous	-
31	5304509298		Sensor, Temperature, Room		Appelez-nous	-
32	5304508987		Remote Control, Transmitter		Appelez-nous	-
33	5304509299		Hose Assembly, Exhaust		Appelez-nous	-
34	5304502058		Hose, Exhaust				$ 120.01
35	5304509300		Adapter A, Hose-to-unit				$ 64.50
36	5304509301		Adapter B, Hose-to-window		Appelez-nous	-
37	5304509302		Window Slider Kit				$ 279.54
