View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

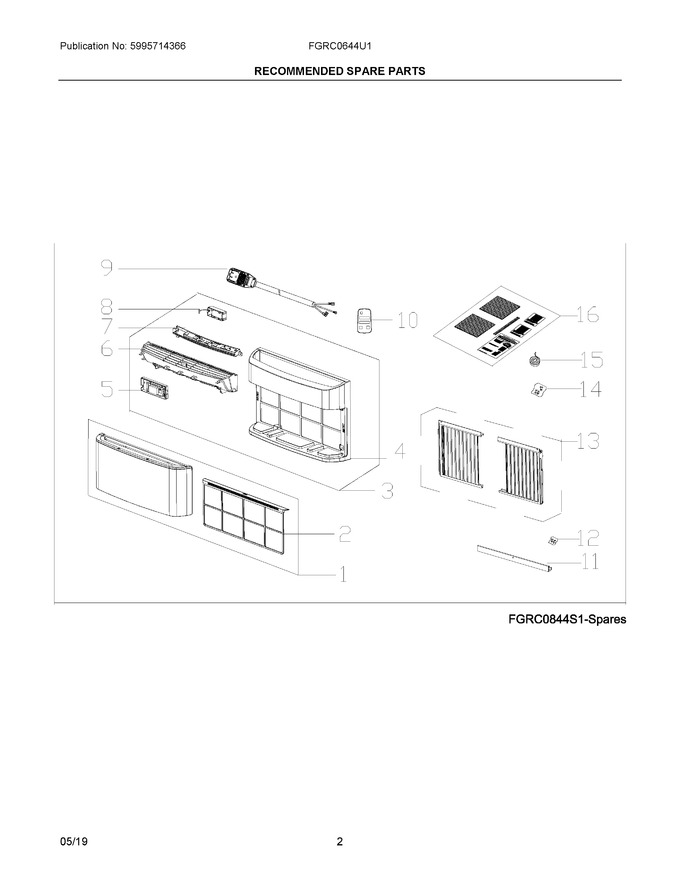

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304504954 | Front Panel, Assembly, W/filter |
|
- | |||||
| 2 | 5304504955 | Filter, Air, Plastic Frame |
|
- | |||||
| 3 | 5304517004 | Frame Assembly, W/wifi Module |
|
- | |||||
| 4 | 5304504957 | Frame, Front |
|
- | |||||
| 5 | 5304504958 | Housing, Display |
|
- | |||||
| 6 | 5304517005 | Louver, Exhaust |
|
- | |||||
| 7 | 5304504960 | Control, Touch Pad |
|
- | |||||
| 8 | 5304512359 | Display Box, Assembly |
|
- | |||||
| 9 | 5304504719 | Power Cord, Electric, Lcdi |
|
- | |||||
| 10 | 5304504962 | Remote Control, Transmitter, Smart |
|
- | |||||
| 11 | 5304504697 | Rail, Shutter Track, Top |
|
- | |||||
| 12 | 5304472191 | Screw Kit, Top Rail Mount |
|
$ 16.22 | |||||
| 13 | 5304504710 | Window Filler Kit, Slider Panels |
|
- | |||||
| 14 | 5304491953 | Hardware, Mounting, Screws/locks |
|
$ 19.52 | |||||
| 15 | 5304472211 | Seal Kit, Foam, Sash Filler |
|
$ 36.12 | |||||
| 16 | 5304504963 | Panel, Insulation, R1 |
|
- |
