01 - Cover Sheet

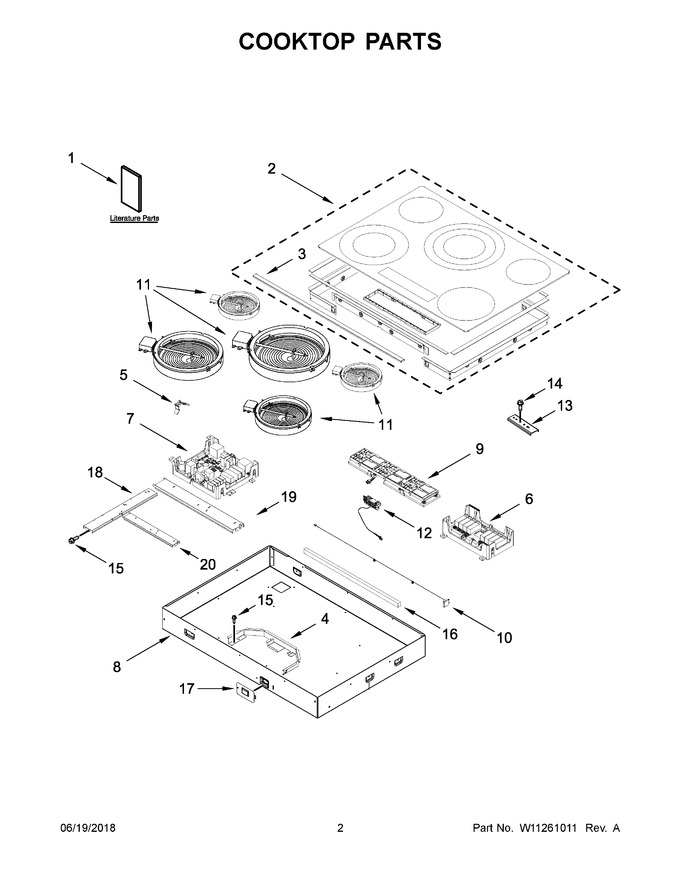

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11206696 | Instructions, Installation |
|
- | |||||
| 2 | W11120996 | Cooktop (black) |
|
- | |||||
| 3 | N/P | Trim, Front Stainless (not Serviced) |
|
- | |||||
| 4 | W11110726 | Shield, Heat |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | W11259509 | Appliance Manager, Expansion (Replaces: W11115981) |
|
Immediately | $ 501.39 | ||||
| 7 | W11115993 | Appliance Manager, Copernicus |
|
- | |||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11115966 | Assembly, Ui |
|
- | |||||
| 10 | W11179388 | Antenna |
|
- | |||||
| 11 | W11259508 | Element (3200w) (left Front) (Replaces: W11117008) |
|
Immediately | $ 338.51 | ||||
| 12 | W11179787 | Assembly, Loki Wifi |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | W11260678 | Top, Foam (heat Shield) (Replaces: W11177352) |
|
$ 24.71 | |||||
| 17 | N/P | Cover, Win Port (not Serviced) |
|
- | |||||
| 18 | W11175316 | Rail, Short Cooktop |
|
- | |||||
| 19 | W11110717 | Rail, Auxiliar |
|
- | |||||
| 20 | W11106010 | Rail, Horizontal |
|
- | |||||
| 11A | W11171119 | Element (1200w) (left Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 11B | W10823720 | Element (3000w) (center Rear) (Replaces: W10187839) |
|
Immediately | $ 386.80 | ||||
| 11C | WP8273993 | Element (1800w) (right Front) (Replaces: 8273993) |
|
Immediately | $ 287.73 | ||||
| 11D | WPW10342780 | Element (1300w) (right Rear) (Replaces: W10342780) |
|
Immediately | $ 168.46 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11161586 | Guide, Use & Care |
|
- | |||||
| 1C | W11238368 | Diagram, Wiring |
|
- | |||||
| 1D | W11228287 | Guide, Internet Connectivity |
|
- | |||||
| 2A | W11120997 | Cooktop (stainless) |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 156.46 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11261074 | Insulation, Cooktop (Replaces: W11160360) |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| NI | WP74005233 | Screw (Replaces: 7101P520-60) |
|
$ 7.91 | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | W11111812 | Harness, Main |
|
- |
