01 - Cover Sheet

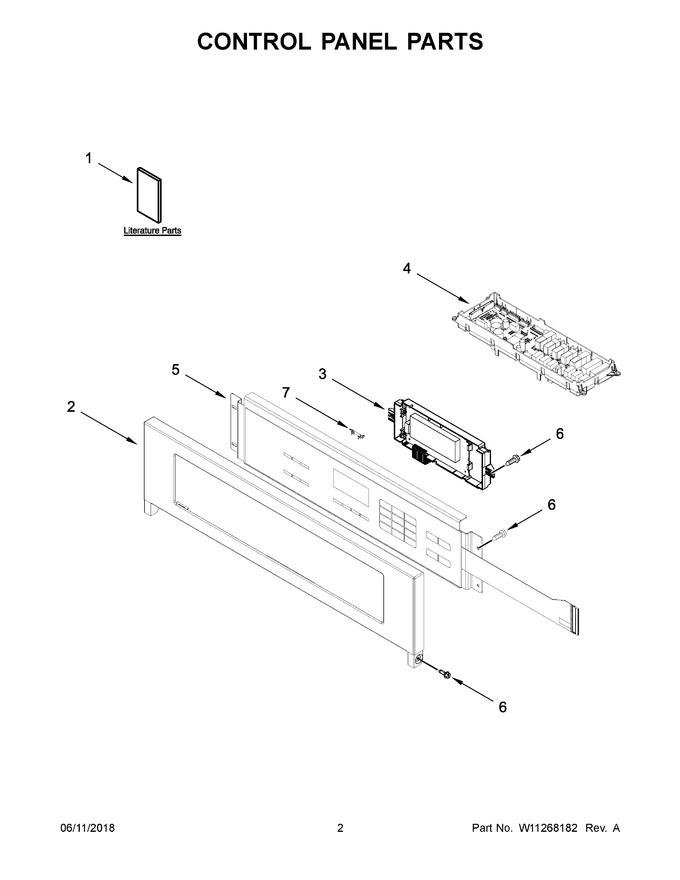

02 - Control Panel Parts
03 - Oven Parts
04 - Top Venting Parts
05 - Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10758300 | Guide, Use & Care |
|
- | |||||
| 2 | W10704699 | Assembly, Control Panel Skin (stainless) |
|
$ 416.34 | |||||
| 3 | W10803991 | Interface (maxwell), User Board (Replaces: W10752315) |
|
Immediately | $ 420.04 | ||||
| 4 | W10803993 | Control (Replaces: W10721211) |
|
$ 423.85 | |||||
| 5 | W10694991 | Assembly, Membrane (stainless) |
|
$ 766.31 | |||||
| 6 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 7 | W11025102 | Fuse, Thermal (Replaces: W10794084) |
|
Immediately | $ 20.15 | ||||
| 1A | W10758285 | Instructions, Installation |
|
- | |||||
| 1B | W10776932 | Sheet, Tech |
|
- | |||||
| 1C | W10767152 | Diagram, Wiring |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11157776 | Harness, Main |
|
- | |||||
| NI | W11177680 | Harness, Latch |
|
- | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 231.69 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| NI | 4451761 | Support, Wiring |
|
- |
