01 - Cover Sheet

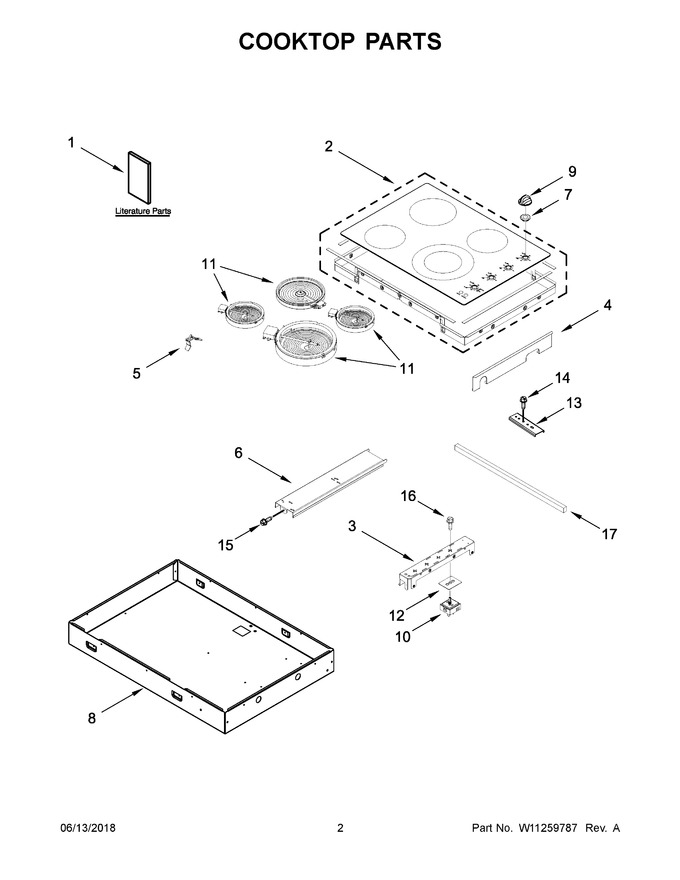

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11206696 | Instructions, Installation |
|
- | |||||
| 2 | W11260701 | Cooktop (black) (Replaces: W11120969) |
|
$ 477.24 | |||||
| 3 | W11215836 | Plate, Switch |
|
$ 76.22 | |||||
| 4 | W11102060 | Shield, Switch Plate |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | W11175314 | Rail, Vertical |
|
- | |||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11222048 | Knob, Control (black) (Replaces: W11130625) |
|
Immediately | $ 79.25 | ||||
| 10 | W10911303 | Switch, Infinite (left Front & Right Rear) (Replaces: W10578768) |
|
Immediately | $ 115.27 | ||||
| 11 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 17 | W11261075 | Top, Foam (heat Shield) (Replaces: W11177345) |
|
Immediately | $ 26.58 | ||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 23.76 | ||||
| 10B | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 239.88 | ||||
| 11A | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 287.73 | ||||
| 11B | WPW10275049 | Element (2500/1200w) (right Front) (Replaces: W10275049) |
|
Immediately | $ 347.53 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11206695 | Guide, Use & Care |
|
- | |||||
| 1C | W11206672 | Diagram, Wiring |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 156.46 | ||||
| NI | W11261076 | Insulation, Cooktop (knob) (Replaces: W11160363) |
|
- | |||||
| NI | W11110594 | Harness, Main |
|
Immediately | $ 284.05 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
