SELECT A DIAGRAM

01 - Cover Sheet

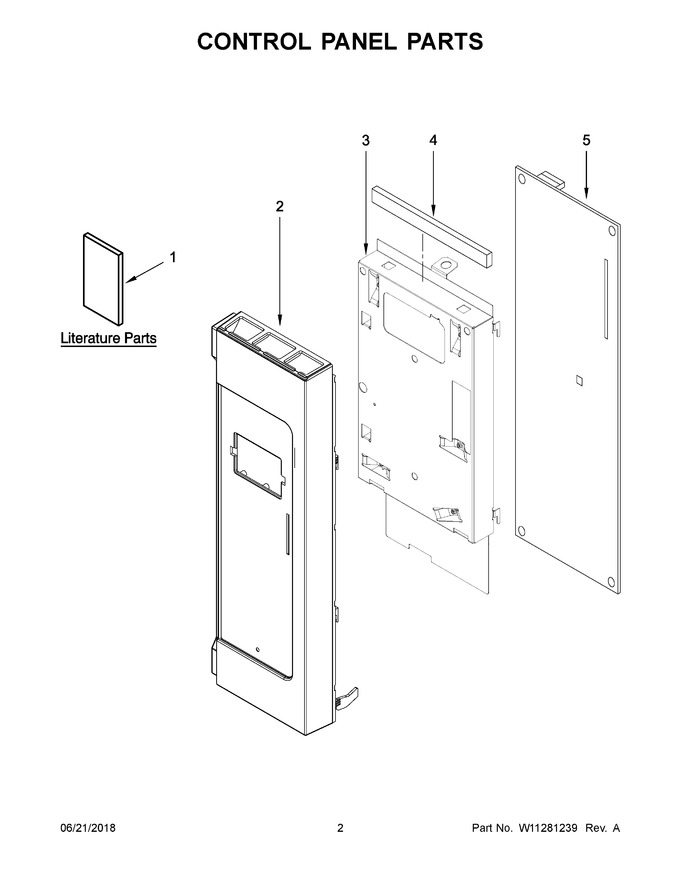

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823831		Installation Instructions		Appelez-nous	-
2	W10889328		Control Panel Assembly (includes Lens And Membrane Switch) (white)				$ 369.52
3	W11676791		Backer, Control   (Replaces: W10833365)				$ 57.06
4	W10833531		Seal, Control				$ 24.51
5	W11552018		Microcomputer   (Replaces: W10849829)			Immediately	$ 125.72
1A	W10835574		Use And Care Guide		Appelez-nous	-
1B	W10835580		Cook Guide Label		Appelez-nous	-
1C	W11219407		Tech Sheet		Appelez-nous	-
2A	W10889327		Control Panel Assembly (includes Lens And Membrane Switch) (black)				$ 369.62
2B	W10889329		Control Panel Assembly (includes Lens And Membrane Switch) (universal Silver)		Appelez-nous	-
2C	W10918928		Control Panel Assembly (includes Lens And Membrane Switch) (stainless)			Immediately	$ 360.79

    View Diagram in Separate Window       Print Part List
