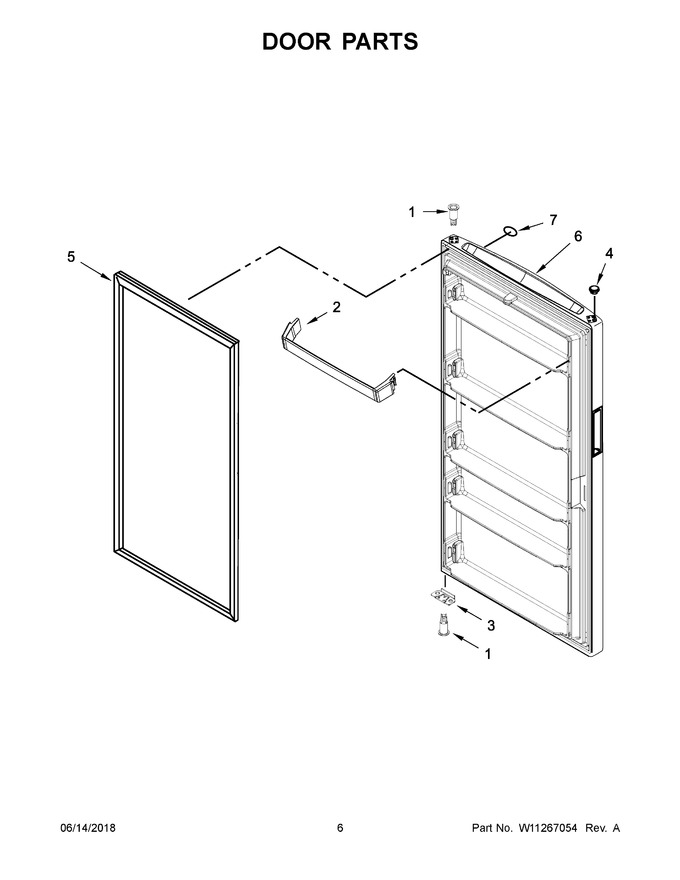

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 2 | W10737497 | Rail, Door Shelf |
|
$ 96.74 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 26.32 | |||||
| 4 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | W10856583 | Gasket, Door (white) (Replaces: W10574474) |
|
Immediately | $ 320.46 | ||||
| 6 | W10746783 | Assembly, Door (includes Handle Cup) (white) (Replaces: W10673691) |
|
$ 895.73 | |||||
| 7 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 |
