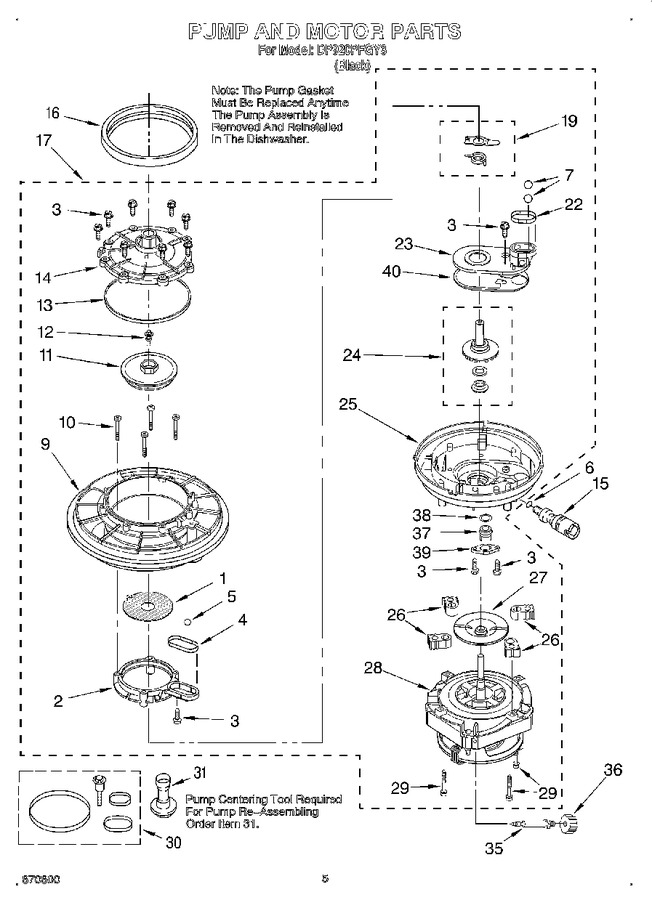

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9740982		Plate, Perforated (includes Item 5) (also Order Item 30) See Note A.		Appelez-nous	-
2	3367173		Base, Inlet (includes Items 1 & 5) (also Order Item 30) See Note A.		Appelez-nous	-
3	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
4	WP302710		Seal, Inlet Base   (Replaces: 302710)				$ 10.44
5	302709		Ball, Check				$ 7.80
6	95080		``o`` Ring		Appelez-nous	-
7	WP719929		Ball, Check   (Replaces: 719929)				$ 11.11
9	9742968		Separator Assembly (includes Items 12, 13 & 22) See Note A.				$ 91.50
10	3400001		Screw		Appelez-nous	-
11	675806		Impeller, Wash (includes Items 12 & 13)   (Replaces: 3378176)			Immediately	$ 142.08
12	WP3371152		Screw & Seal,   (Replaces: 3371152)				$ 10.32
13	WP302711		Seal, Pump Outlet   (Replaces: 302711)				$ 39.87
14	3376844		Outlet, Pump (includes Item 13)				$ 52.77
15	675238		Check Valve (includes Item 6)   (Replaces: 3369482)				$ 91.05
16	661633		Gasket, Pump		Appelez-nous	-
17	W10428773		Pump & Motor Assembly (includes Item 16)   (Replaces: 8051313)				$ 640.26
19	675806		Chopper Kit (also Order Item 30) See Note A.   (Replaces: 3378175)			Immediately	$ 142.08
22	302704		Seal, Drain Cover				$ 7.40
23	3376845		Cover, Drain (also Order Item 30) See Note A.				$ 24.23
24	675806		Impeller, Drain Kit (also Order Item 30) See Note A.   (Replaces: 303539)			Immediately	$ 142.08
25	3376157		Base, Pump (also Order Item 30) See Note A.		Appelez-nous	-
26	3367197		Support, Pump Mounting (4)				$ 5.70
27	W10909679		Slinger (see Note A.)   (Replaces: 3368270)				$ 22.73
28	3377333		Motor (includes Item 27) (also Order Item 30) See Note A.		Appelez-nous	-
29	3369331		Screw		Appelez-nous	-
30	675505		Pump Seal Kit (includes Items 4, 12, 13 & 22)		Appelez-nous	-
31	303918		Tool, Pump Centering				$ 38.41
35	3374757		Shaft, Absorber		Appelez-nous	-
36	3378202		Weight, Absorber		Appelez-nous	-
37	3378083		Thermostat		Appelez-nous	-
38	3376723		Seal, O-ring				$ 7.19
39	3376358		Retainer Thermostat				$ 7.50
40	WP9740674		Gasket, Drain Cover   (Replaces: 9740674)				$ 8.22
