SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

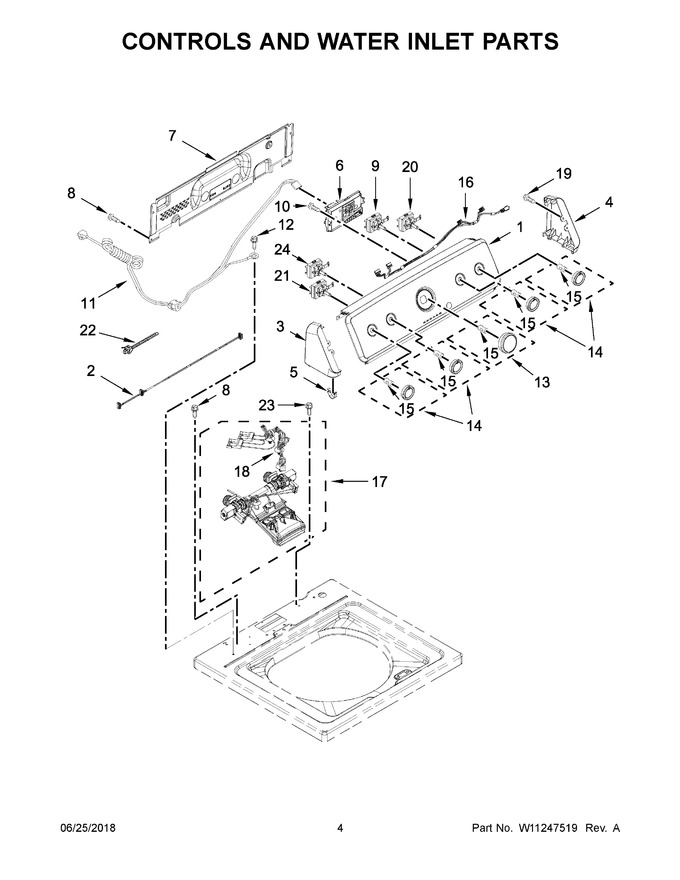

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11236321		Panel, Console   (Replaces: W11227377)				$ 575.23
2	W10694669		Harness, Jumper				$ 81.05
3	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 70.85
4	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 71.16
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11498797		Control Unit Assembly, Machine And Motor   (Replaces: W11211484)				$ 251.24
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 343.27
8	W11685943		Screw   (Replaces: W10660565)				$ 14.26
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 181.40
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
11	W10877409		Cord, Power   (Replaces: W10737739)				$ 123.81
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
13	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 17.93
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 17.93
15	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.81
16	W10694685		Harness, Upper				$ 181.03
17	W11210459		Inlet Assembly, Water   (Replaces: W11025984)			Immediately	$ 102.67
18	W10868094		Harness, Valve				$ 177.25
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 173.43
21	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 129.39
22	W10339680		Cable Tie		Appelez-nous	-
23	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.19
24	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 117.42

    View Diagram in Separate Window       Print Part List
