SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Dishrack


05 - Pump And Motor


06 - Cabinet


07 - Miscellaneous, Lit/optional

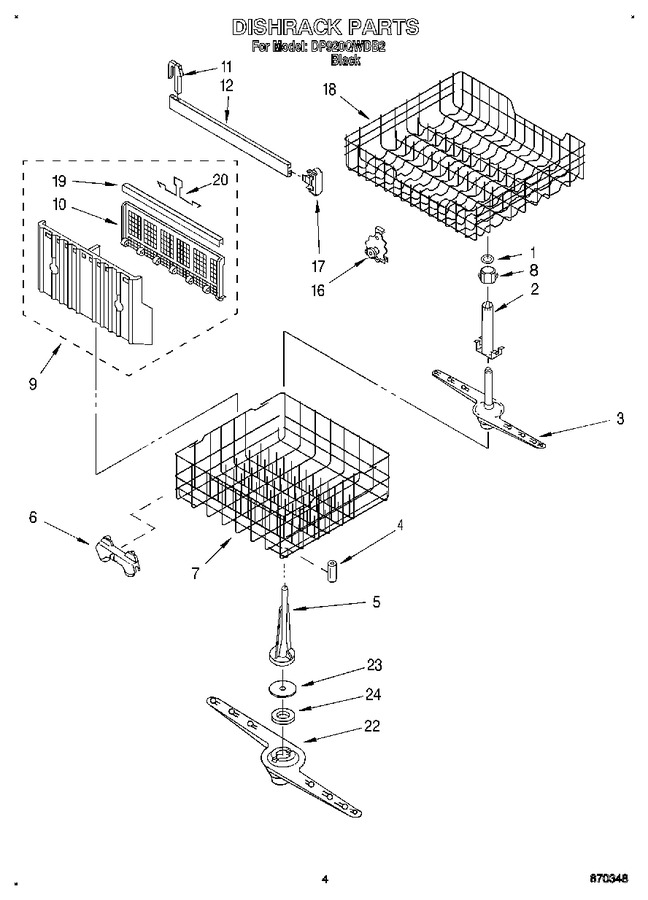

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303722		Clip				$ 5.75
2	3368290		Support, Arm (also Order Items 1 & 8)		Appelez-nous	-
3	3368300		Spray Arm, Upper (also Order Items 1 & 8)		Appelez-nous	-
4	WP3385142		Bumper (2)   (Replaces: 3368006)				$ 94.82
5	300848		Tower, Pressure		Appelez-nous	-
6	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3369509)				$ 98.69
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 3375084)			Immediately	$ 188.14
8	3374702		Support, Lock Spray Arm				$ 6.29
9	3369488		Silverware Basket Assembly		Appelez-nous	-
10	3369485		Cover, Basket		Appelez-nous	-
11	3374701		Stop, Track (2)		Appelez-nous	-
12	3369071		Track		Appelez-nous	-
16	WPW10204131		Adjuster Assy.   (Replaces: 3373365)			Immediately	$ 9.16
17	300845		End Cap				$ 7.63
18	W11169039		Dishrack, Upper   (Replaces: 3375108)			Immediately	$ 203.14
19	717528		Trim, Basket		Appelez-nous	-
20	300086		Handle, Basket		Appelez-nous	-
22	3369347		Sprayarm, Lower		Appelez-nous	-
23	3367910		Cap, Nozzle				$ 39.70
24	719576		Bearing, Nozzle				$ 7.48

    View Diagram in Separate Window       Print Part List
