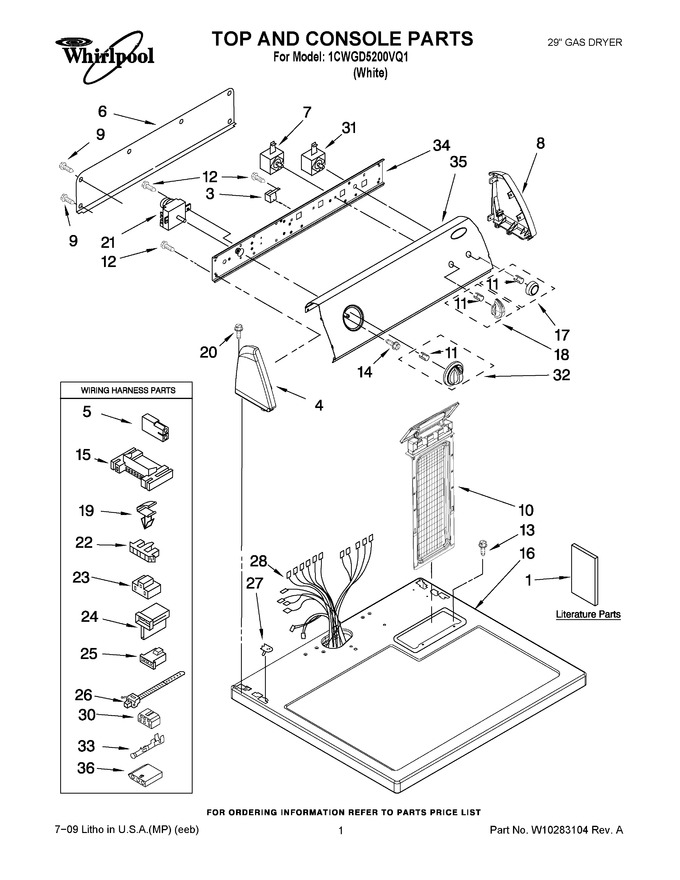

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10185985 | Wiring Diagram |
|
- | |||||
| 1 | W10042960 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10131643 | Instructions, Installation |
|
- | |||||
| 1 | W10131642 | Use & Care Guide |
|
- | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | WP3399640 | Switch, Temperature (Replaces: 3399640) |
|
$ 136.25 | |||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP8566073 | Knob, Push-to-start (Replaces: 8566073) |
|
$ 58.00 | |||||
| 18 | 8565944 | Knob, Control |
|
$ 25.10 | |||||
| 19 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 20 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 21 | WPW10185981 | Timer Assembly (60 Hz.) (Replaces: W10185981) |
|
$ 346.09 | |||||
| 22 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 23 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 26 | 3391249 | Tie, Cable |
|
- | |||||
| 27 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 28 | W10186123 | Harness, Wiring |
|
- | |||||
| 30 | 3347243 | Connector 6-circuit |
|
- | |||||
| 31 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 | ||||
| 32 | 8566061 | Timer Knob Assembly |
|
$ 26.93 | |||||
| 33 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 34 | 8544895 | Bracket, Control |
|
- | |||||
| 35 | W10167872 | Panel, Control |
|
$ 182.41 | |||||
| 36 | 3936144 | Connector |
|
$ 21.22 |
