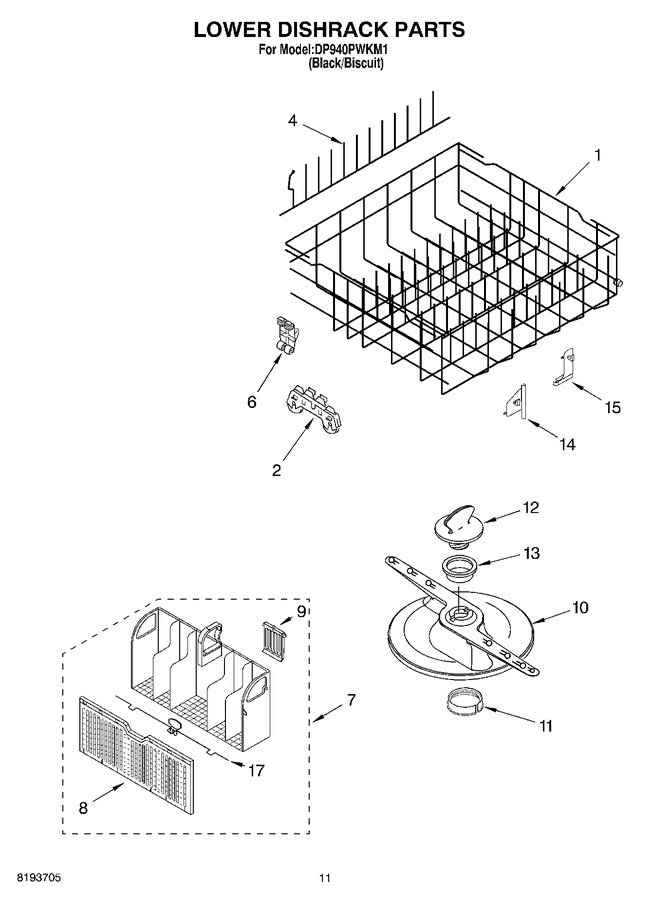

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10161215		Dishrack, Lower   (Replaces: 8519609)				$ 198.12
2	WP8268645		Wheel & Transport Assembly   (Replaces: 8268820)			Immediately	$ 62.31
4	8268869		Tinerow, Folding				$ 35.71
6	8268522		Retainer, Tine Row				$ 5.51
7	W11027965		Silverware Basket Assembly   (Replaces: 8268884)				$ 237.93
8	8519540		Door, Silverware Basket		Appelez-nous	-
9	8268886		Lid, Silverware Basket		Appelez-nous	-
10	WP8268874		Sprayarm, Lower   (Replaces: 8268874)				$ 127.32
11	WP3376846		Seal, Lower Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
12	WP8268873		Nut, Sprayarm   (Replaces: 8268873)			Immediately	$ 7.57
13	WP9742946		Bearing, Radial   (Replaces: 9742946)			Immediately	$ 26.80
14	8268867		Clip, Silverware Basket (left)				$ 44.85
15	8268868		Clip, Silverware Basket (right)				$ 49.81
17	8519541		Latch Assembly		Appelez-nous	-
